Sensor-switched LED outdoor light - Professional Line

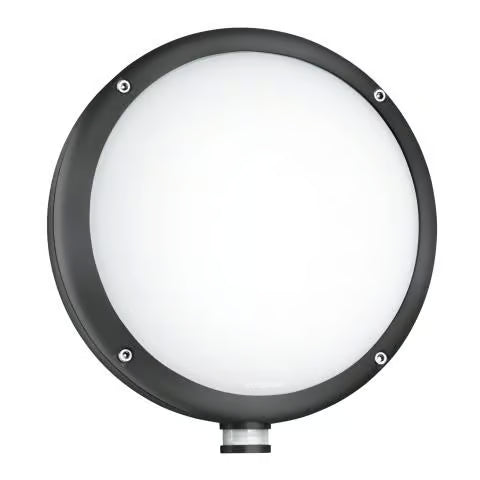

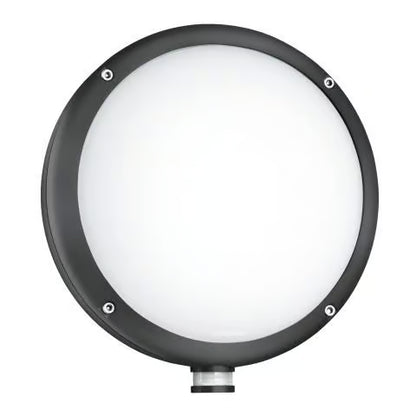

L 330 S Anthracite

Product Code: 053079

Classically beautiful. And sturdy. The round L 330 S sensor-switched outdoor LED light illuminates driveways, garages or stairs with pleasant, even light while creating an inviting atmosphere. The base is made of weatherproof plastic, the diffuser of impact-resistant PMMA (IK10). With 360° infrared mini sensor and four programmes. With 815 lm at only 8,4 W. 3000 K colour temperature. Several lights can be interconnected by cable.
This is how you save.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.



Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

infrared sensor 360°

Icon

max. 7 m

Icon

IP44

Icon

2 - 1000 lux

Icon

5 sec - 15 min

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 053079

  • PU1, net weight: 1,037 kg

  • Luminous flux total product: 815 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 8,4 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)109 x 253 x 270 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty5 years
Settings viaPotentiometers
With remote controlNo
VersionAnthracite
PU1, EAN4007841053079
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, courtyard & driveway
ColourAnthracite
Package content1

Fixation / mounting

Installation sitewall

Housing

Impact resistanceIK10
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 35 °C
Housing materialPlastic
Cover materialPlastic, opal

Electrical equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Output8,4 W
Average rated life expectancy of power supply unit at 25°C> 60000 h

Sensor technology

Mounting height max.2,50 m
Slave mode selectableNo
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 2 m (13 m²)
Reach, tangentialr = 7 m (154 m²)
Cover materialshrouds
Optimum mounting height2 m
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product815 lm
Measured luminous flux (360°)815 lm
Total product efficiency97 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Service life LED L70B50 (25°)> 60000 h
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Colour Rendering Index CRI= 82

General information

Article number053079
European Article Number (EAN)4007841053079
Basic light level function in per cent10 %
Basic light level function percentage, from10 %
Basic light level function percentage, up to10 %

Functions

Functions4 programme settings geared to practical needs, can be selected on removable sensor module
Twilight setting2 – 1000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night

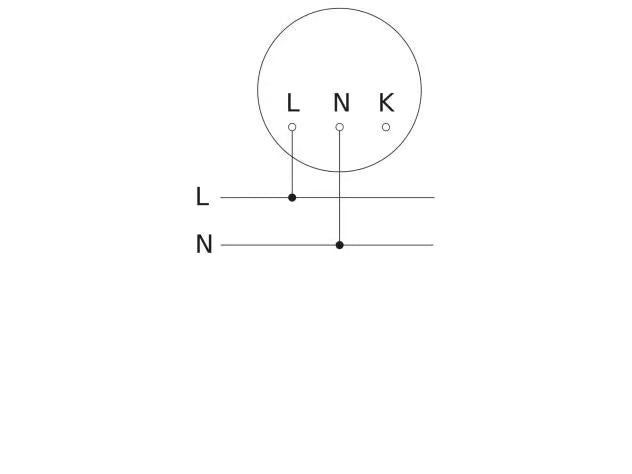

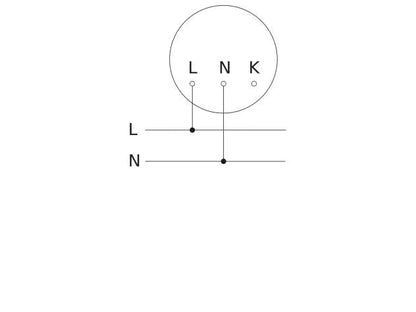

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable
