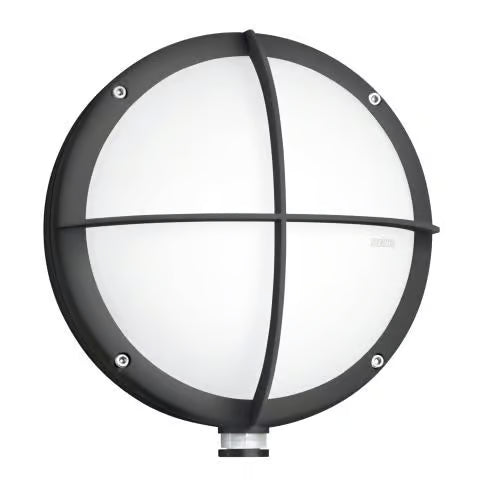

Sensor-switched LED outdoor light - Professional Line

L 331 S Anthracite

Product Code: 053093

Rugged all round. Rugged sensor-switched LED light in weatherproof plastic and impact-resistant PMMA diffuser, including additional grid guard. With its round shape, 3000 K colour temperature and 711 lm from only 8,4 W, the L 331 S provides optimum lighting all around the building. Several lights can be interconnected by cable. Infrared mini-sensor with four programs. Angle of coverage: 360°. Reach max. 7 m.

Pairs well with
This is how you save.
Stylish, practical and impact-resistant.
Stylish, practical and impact-resistant.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

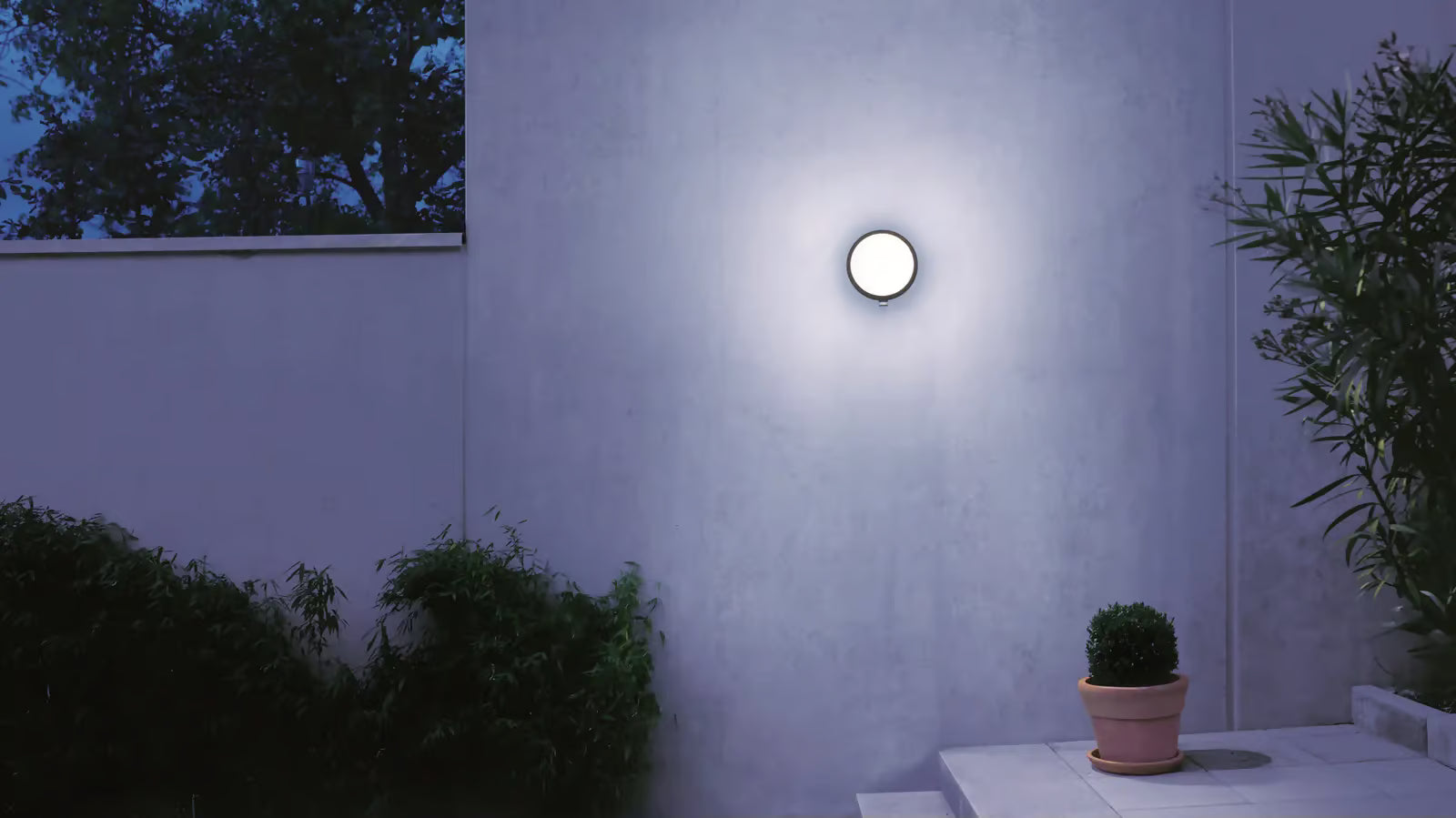

Stylish, practical and impact-resistant.

The L 330 S and L 331 LED sensor-switched outdoor lights bring pleasant, even lighting to your outside wall. Sleek, minimalist design makes it particularly suitable for driveways, garages or stairwells and round lamp cover distributes light for illumination that's full of atmosphere. Incidentally, we have given these lights the very latest control system that's even capable of synchronizing several lights. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

Stylish, practical and impact-resistant.

The L 330 S and L 331 LED sensor-switched outdoor lights bring pleasant, even lighting to your outside wall. Sleek, minimalist design makes it particularly suitable for driveways, garages or stairwells and round lamp cover distributes light for illumination that's full of atmosphere. Incidentally, we have given these lights the very latest control system that's even capable of synchronizing several lights. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

Stylish, practical and impact-resistant.

The L 330 S and L 331 LED sensor-switched outdoor lights bring pleasant, even lighting to your outside wall. Sleek, minimalist design makes it particularly suitable for driveways, garages or stairwells and round lamp cover distributes light for illumination that's full of atmosphere. Incidentally, we have given these lights the very latest control system that's even capable of synchronizing several lights. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

Stylish, practical and impact-resistant.

The L 330 S and L 331 LED sensor-switched outdoor lights bring pleasant, even lighting to your outside wall. Sleek, minimalist design makes it particularly suitable for driveways, garages or stairwells and round lamp cover distributes light for illumination that's full of atmosphere. Incidentally, we have given these lights the very latest control system that's even capable of synchronizing several lights. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

infrared sensor 360°

Icon

max. 7 m

Icon

IP44

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 053093

  • PU1, net weight: 1,071 kg

  • Luminous flux total product: 711 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 8,4 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)124 x 253 x 270 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty5 years
Settings viaPotentiometers
With remote controlNo
VersionAnthracite
PU1, EAN4007841053093
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, courtyard & driveway
ColourAnthracite
Package content1

Fixation/ mounting

Installation sitewall

Housing

Impact resistanceIK10
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 35 °C
Housing materialPlastic
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output8,4 W
Average rated life expectancy of power supply unit at 25°C> 60000 h

Sensor technology

Mounting height max.2,50 m
Slave modeselectableNo
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 2 m (13 m²)
Reach, tangentialr = 7 m (154 m²)
Cover materialshrouds
Optimum mounting height2 m
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product711 lm
Measured luminos flux (360°)711 lm
Total product efficiency85 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Service life LED L70B50 (25°)> 60000 h
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Colour Rendering Index CRI= 82

General information

Article number053093
European Article Number (EAN)4007841053093
Basic light level function in per cent10 %
Basic light level function percentage, from10 %
Basic light level function percentage, up to10 %

Functions

Functions4 programme settings geared to practical needs, can be selected on removable sensor module
Twilight setting2 – 1000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night

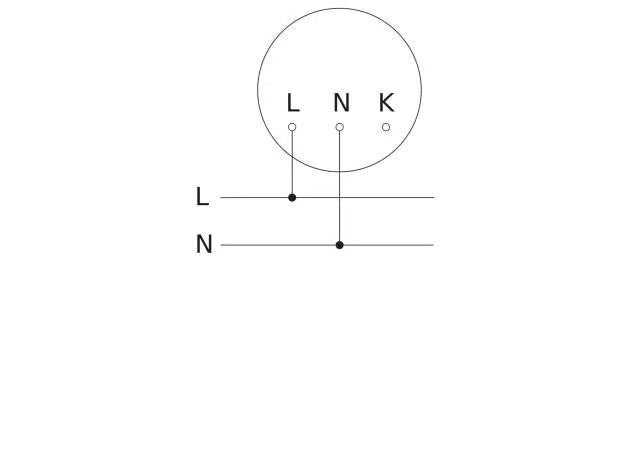

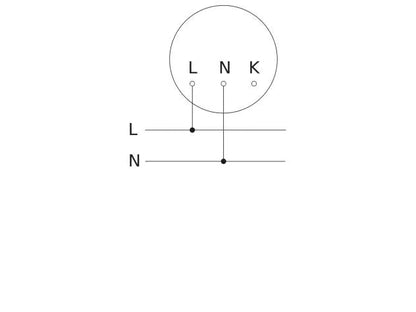

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categorySensor-switched LED outdoor light
