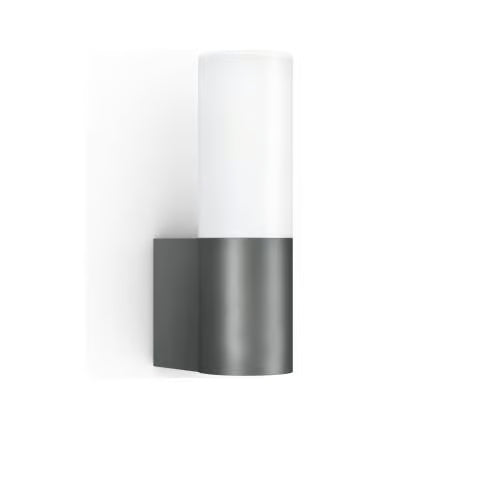

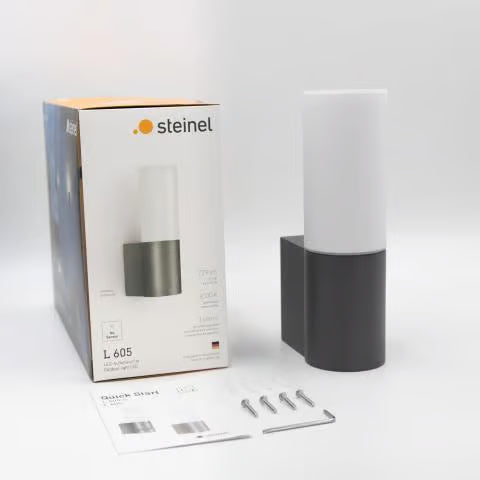

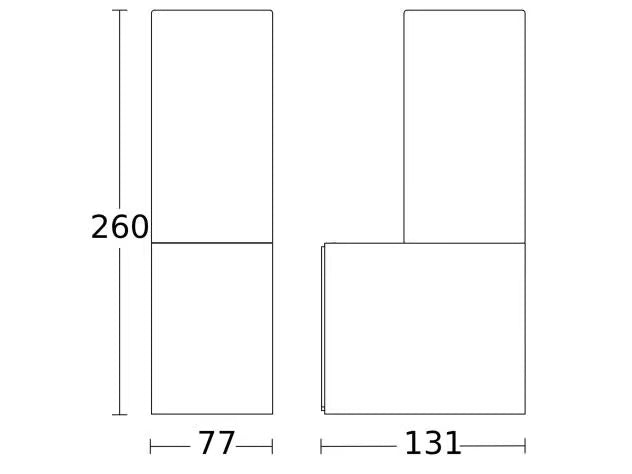

Outdoor light without sensor

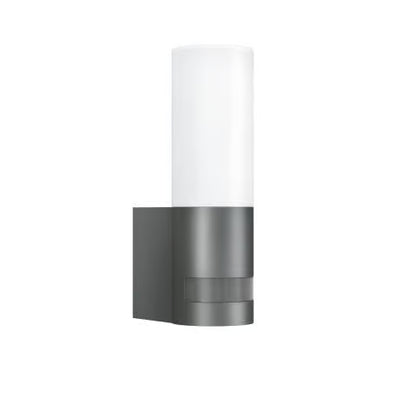

L 605 with motion detector

Product Code: 065287

  • Outdoor light with motion detector and elegant aluminium base
  • Glass body made of high-quality opal glass ensures uniform and soft light distribution

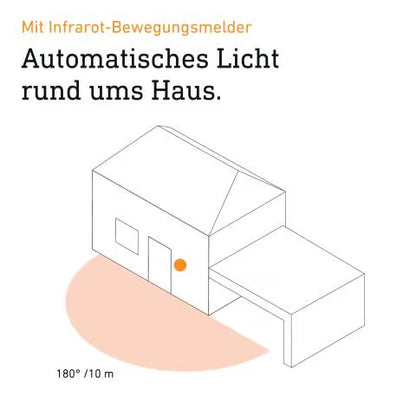

  • Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
  • Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light, 4 intelligent programmes
  • Warm white light (3000 K) and long-life 11,3 W LEDs with 729 lm

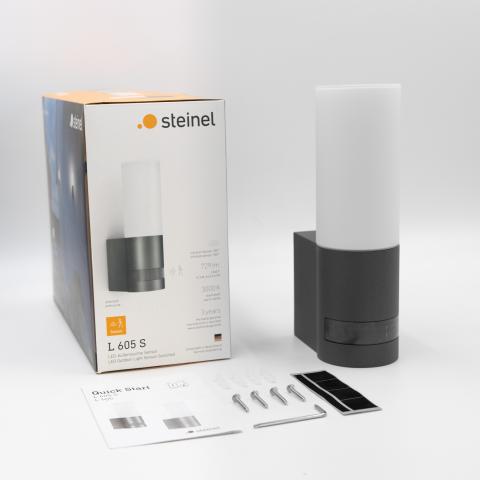

  • Incl. mounting accessories - plastic-free packaging

Pairs well with
How much energy do you want to save?
Powerful technology. Chic look.
Functions at a glance

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

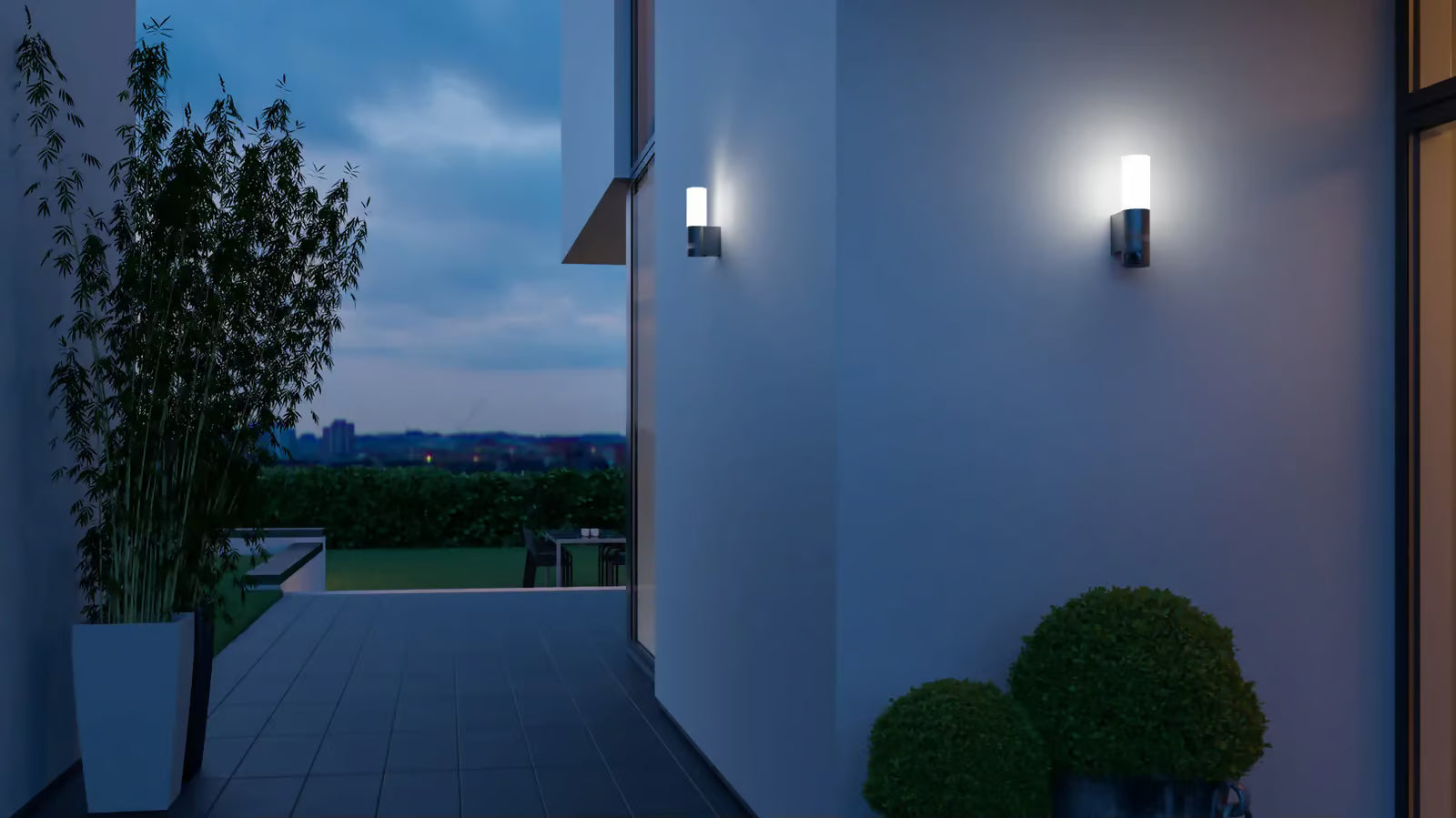

Powerful technology. Chic look.

The LED sensor outdoor light L 605 S is equipped with a 180° infrared sensor with 10 m range and four intelligent sensor programmes. As soon as the sensor luminaire detects movement at dusk or in the dark, it automatically lights up brightly and reliably with warm white 3000 K and 800 lm - and goes out again automatically after a while. At the same time, it is extremely efficient with only. The elegant outdoor luminaire is mounted via the elegant aluminium base, which is mounted on the wall in no time at all. The glass body made of high-quality opal glass ensures an even and soft light distribution. Time and twilight thresholds are easily adjustable. Continuous light and night light functions are also part of the functional scope, as is an elegant soft light start. Tip: The L 605 S is an ideal visual match for the L 620 CAM SC.

Functions at a glance

  • Soft light start: elegantly and softly switches the light up to or down from 100% output
  • Basic light: dimmed continuous illumination (10%) throughout the night, which only switches to maximum light output when motion is detected. When the convenient economy mode is activated, the basic light is limited to half the night.
  • Continuous light: switches the light on for max. 4 hours, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected

Four intelligent programs enable different combinations of the specified functions for any requirement

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Powerful technology. Chic look.

The LED sensor outdoor light L 605 S is equipped with a 180° infrared sensor with 10 m range and four intelligent sensor programmes. As soon as the sensor luminaire detects movement at dusk or in the dark, it automatically lights up brightly and reliably with warm white 3000 K and 800 lm - and goes out again automatically after a while. At the same time, it is extremely efficient with only. The elegant outdoor luminaire is mounted via the elegant aluminium base, which is mounted on the wall in no time at all. The glass body made of high-quality opal glass ensures an even and soft light distribution. Time and twilight thresholds are easily adjustable. Continuous light and night light functions are also part of the functional scope, as is an elegant soft light start. Tip: The L 605 S is an ideal visual match for the L 620 CAM SC.

Functions at a glance

  • Soft light start: elegantly and softly switches the light up to or down from 100% output
  • Basic light: dimmed continuous illumination (10%) throughout the night, which only switches to maximum light output when motion is detected. When the convenient economy mode is activated, the basic light is limited to half the night.
  • Continuous light: switches the light on for max. 4 hours, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected

Four intelligent programs enable different combinations of the specified functions for any requirement

Icon

long life LED 50.000 h

Icon

3000K warm-white

Icon

infrared sensor 180°

Icon

max. 10 m

Icon

IP44

Icon

10 - 2000 lux

Icon

5 sec - 15 min

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 065287

  • PU1, net weight: 1,004 kg

  • Luminous flux total product: 729 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 11,3 W

  • Package content: 1

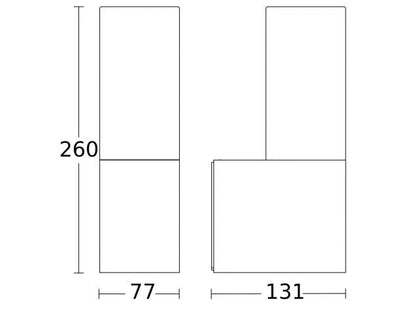

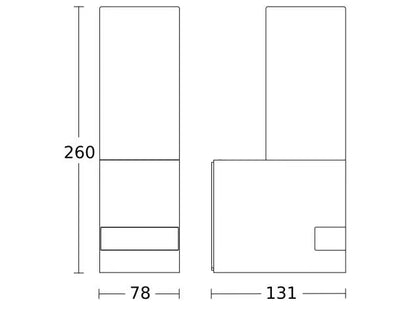

Product dimension

General

Dimensions (L x W x H)131 x 78 x 260 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
Versionwith motion detector
PU1, EAN4007841065287
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony
ColourAnthracite
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation sitewall

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -10 up to 40 °C
Housing materialAluminium
Cover materialGlass opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output11,3 W
Life expectancy of power supply unit (max. °C)36000 h
Average rated life expectancy of power supply unit at 25°C> 36000 h

Sensor technology

Mounting height max.2,00 m
Slave modeselectableNo
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialr = 2 m (6 m²)
Reach, tangentialr = 10 m (157 m²)
Cover materialsticker
Optimum mounting height2 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
Luminous flux total product729 lm
Measured luminos flux (360°)729 lm
Total product efficiency64,5 lm/W
Colour temperature3000 K
LampLED cannot be replaced
LED life expectancy (max. °C)36000 h
Service life LED L70B50 (25°)> 36000 h
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable
Colour Rendering Index CRI= 82

General information

Article number065287
European Article Number (EAN)4007841065287
Basic light level function in per cent10 %
Basic light level function percentage, from10 %
Basic light level function percentage, up to10 %

Functions

Twilight setting10 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Main light adjustableNo
Twilight setting TEACHNo

Connection

InterconnectionNo

General information

Product categorySensor-switched LED outdoor light
