Photo-cell-controlled light

LN 1 N

Product Code: 649715

  • Outdoor light with twilight sensor and house number sticker
  • Made of UV-resistant, impact-resistant material according to IK07 for a long service life
  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • Warm white light (3000 K) and long-life 4,9 W LEDs with 440 lm
  • Incl. house number arch and mounting accessories - plastic-free packaging

Pairs well with

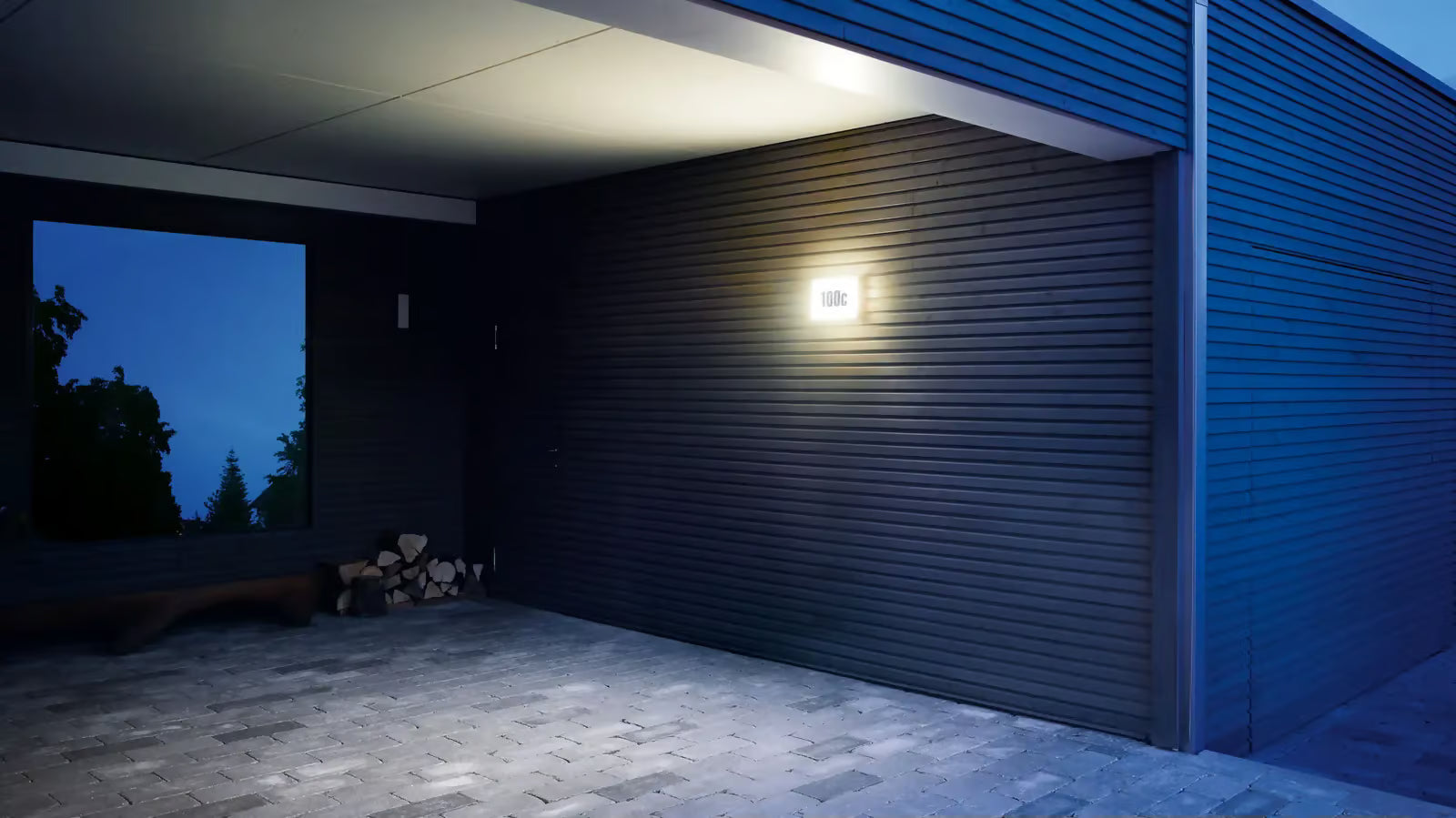

Light where it's dark. All automatically.
Functions at a glance

Light where it's dark. All automatically.

So as not to leave you standing in the dark any more, we've developed an LED light with integrated photo-cell controller. The LN 1 N combines exceptional design with intelligent technology and is ideal for permanent night-time illumination anywhere around the home. Where and how you install the light is left to your imagination. We have designed it so that it can be installed either horizontally or vertically on the wall or ceiling - and always with effortless ease. Complete with adhesive house numbers.

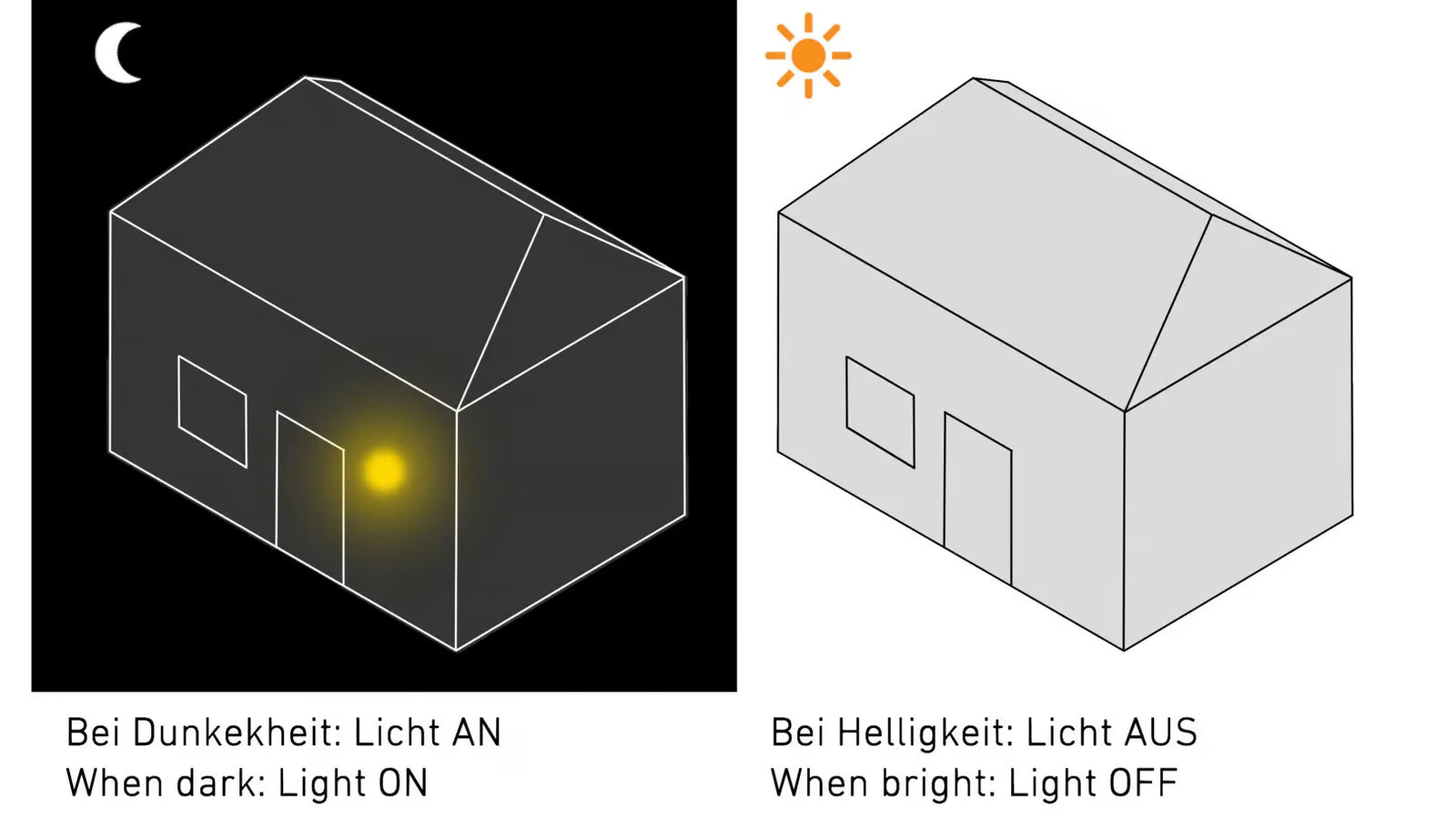

Functions at a glance

The LN 1 N has an integrated brightness sensor that automatically switches the light on in the evening and off again in the morning. The light conditions under which the brightness sensor should switch can be set by the user.



Light where it's dark. All automatically.

So as not to leave you standing in the dark any more, we've developed an LED light with integrated photo-cell controller. The LN 1 N combines exceptional design with intelligent technology and is ideal for permanent night-time illumination anywhere around the home. Where and how you install the light is left to your imagination. We have designed it so that it can be installed either horizontally or vertically on the wall or ceiling - and always with effortless ease. Complete with adhesive house numbers.



Functions at a glance

The LN 1 N has an integrated brightness sensor that automatically switches the light on in the evening and off again in the morning. The light conditions under which the brightness sensor should switch can be set by the user.



Icon

long life LED 50.000 h

Icon

3000K warm-white

Icon

IP54

Icon

5 - 200 lux

Icon

IK07

Icon

Ideal 2 m

Icon

energy saving

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 649715

  • PU1, net weight: 0,665 kg

  • Luminous flux total product: 440 lm

  • Colour temperature: 3000 K

  • With motion detector: No

  • Output: 4,9 W

  • Package content: 1

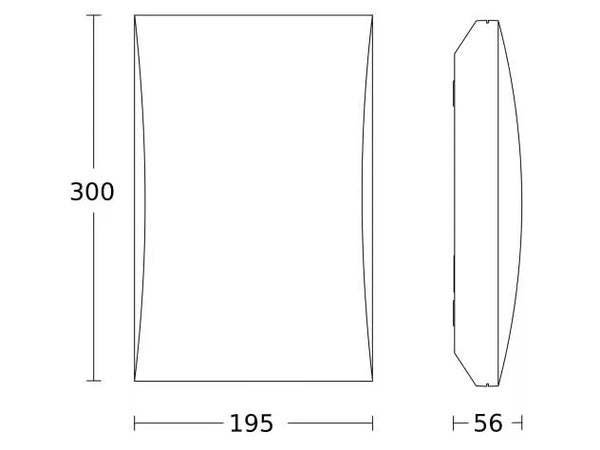

Product dimension

General

Dimensions (L x W x H)56 x 300 x 195 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
PU1, EAN4007841649715
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, courtyard & driveway
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersYes
Installation sitewall, ceiling

Housing

Impact resistanceIK07
IP-ratingIP54
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output4,9 W

Sensor technology

Slave modeselectableNo
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityNo

Luminaire

Photo-cell controllerYes
Luminous flux total product440 lm
Measured luminos flux (360°)440 lm
Total product efficiency90 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Service life LED L70B50 (25°)> 60000 h
Drop in luminous flux in accordance with LM80L70B10
Basewithout
LED cooling systemPassive Thermo Control
Soft light startNo
Colour Rendering Index CRI= 82

General information

Article number649715
European Article Number (EAN)4007841649715

Functions

Twilight setting5 – 200 lx
Basic light level functionNo

Connection

InterconnectionNo

General information

Product categoryPhoto-cell-controlled light
