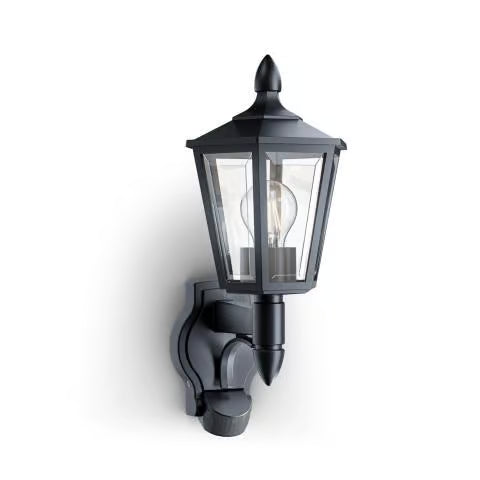

L 16 S Black

Product Code: 094966

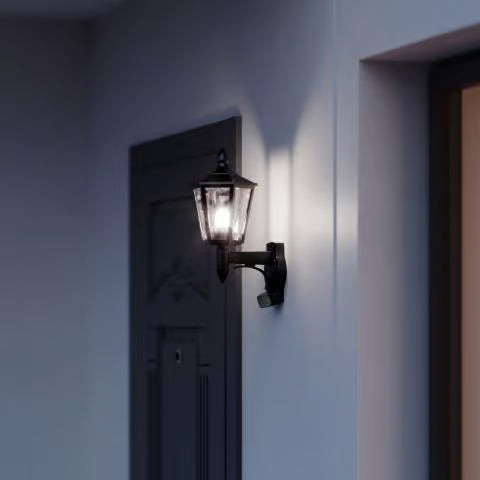

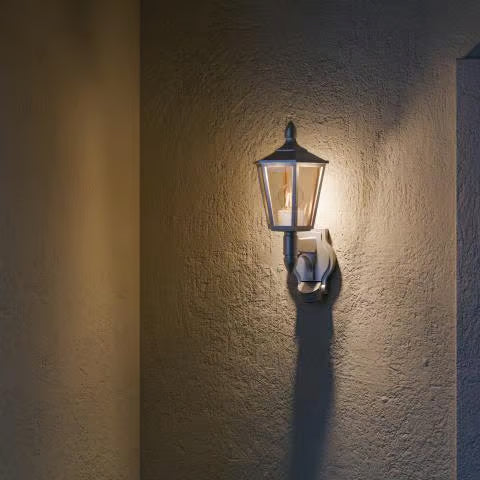

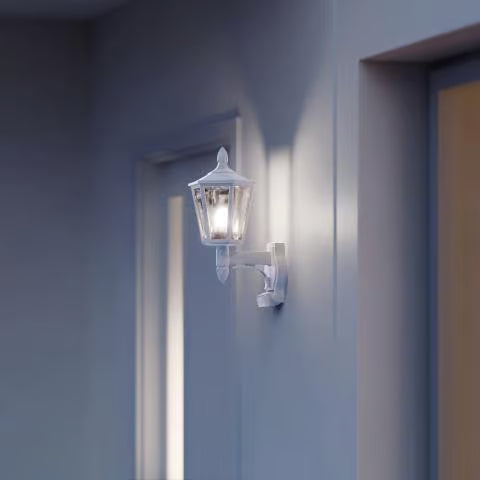

Outdoor light with motion detector in classic design
Made of high-quality, UV-resistant plastic with nostalgic details

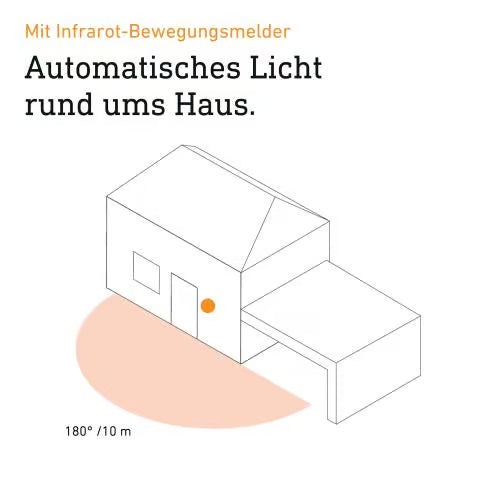

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)
Sensor coloured in inconspicuous housing colour
With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
Incl. mounting accessories - plastic-free packaging

Color: Black

Black
White

Product variants

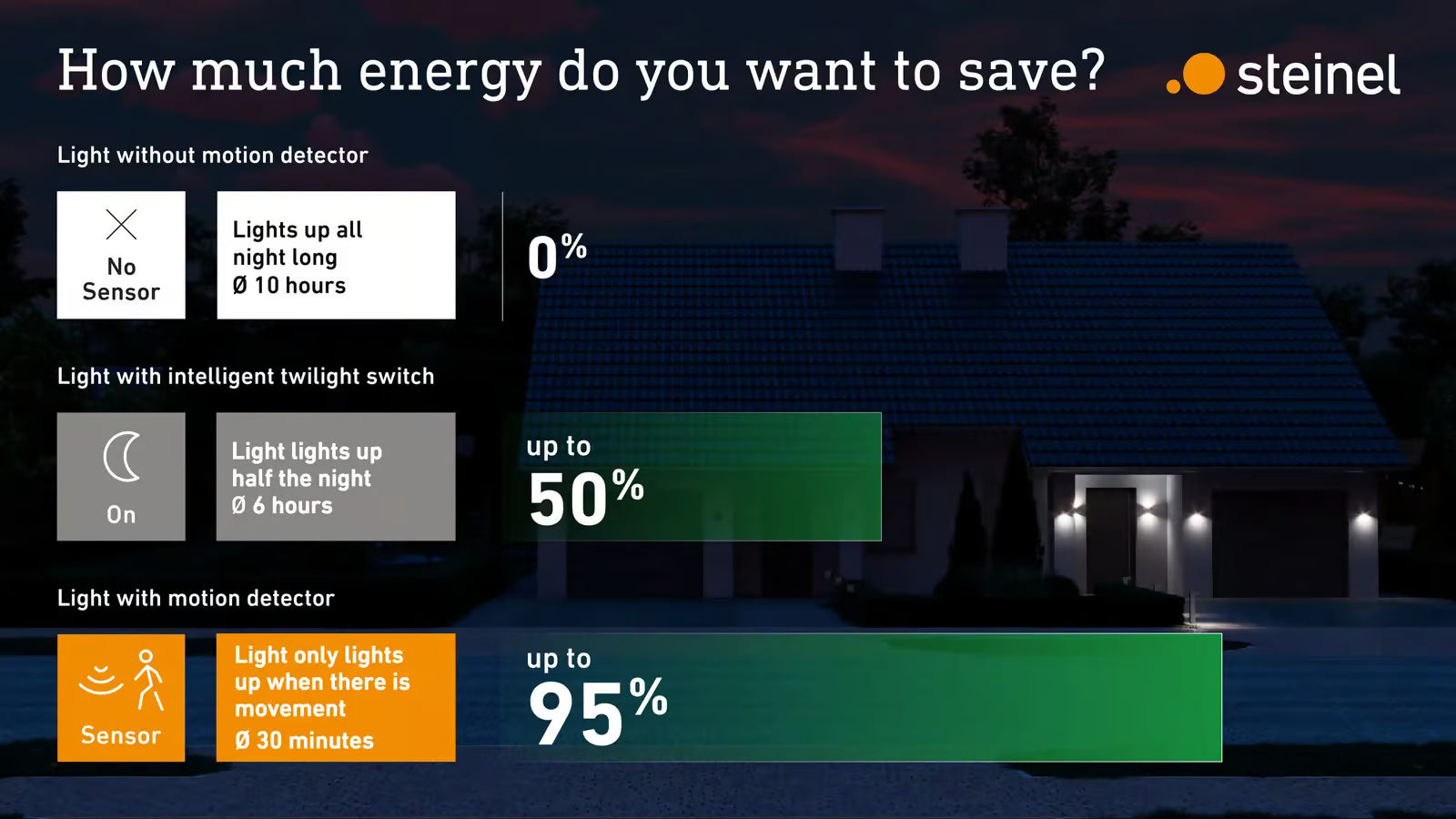

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

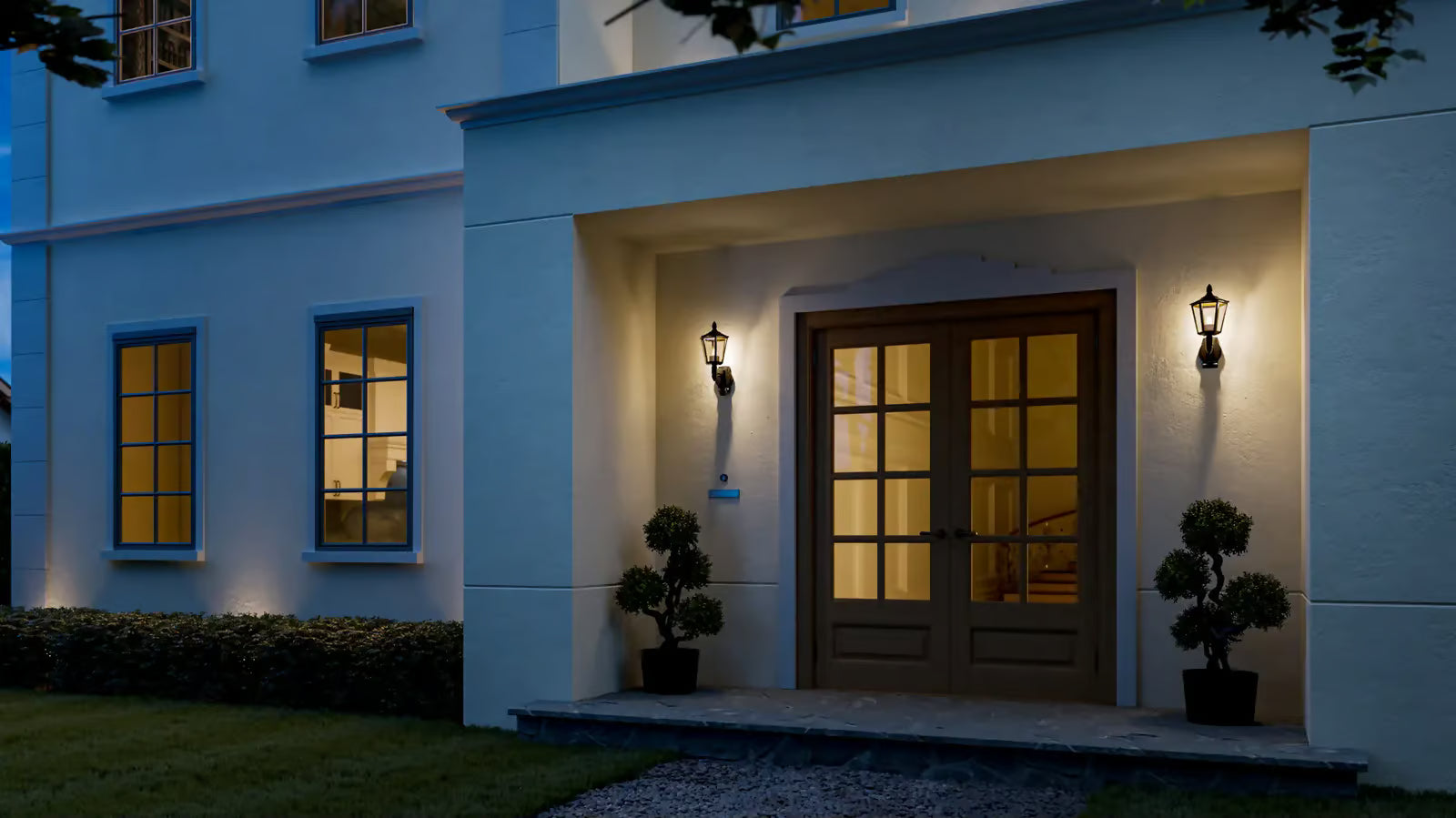

Timeless classic.

The L 16 S sensor outdoor light combines nostalgic design with modern function. Made of high-quality, UV-resistant plastic, it impresses with clean lines, nostalgic details and a lens discreetly coloured to match the housing. With its E27 socket, it is flexible in use and suitable for incandescent bulbs up to 60 W as well as energy-saving LED or compact fluorescent lamps up to 20 W (not included). This way, you bring a touch of tradition to your façade while enjoying contemporary technology.

max. 60 W E27

infrared sensor 180°

max. 10 m

IP44

90° vertical

2 - 2000 lux

8 sec - 35 min

ideal 2 m

energy saving

Application, place: Outdoors
Installation: Surface wiring
Article number: 094166
PU1, net weight: 0,75 kg
With motion detector: Yes
Output: 60 W
Package content: 1

General

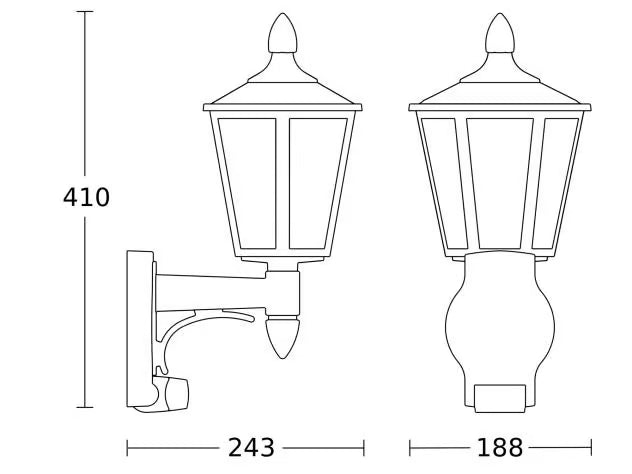

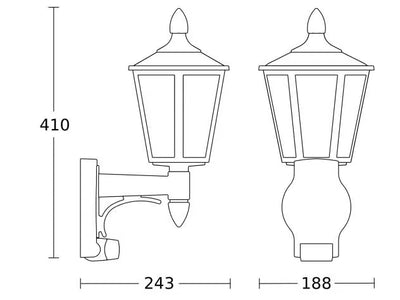

Dimensions (L x W x H)	243 x 188 x 410 mm
With lamp	No
Manufacturer's Warranty	3 years
Settings via	Potentiometers
With remote control	No
Version	black
PU1, EAN	4007841094966
Application, place	Outdoors
Application, room	outdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Colour	black
Package content	1

Fixation / mounting

Installation site

wall

Housing

Impact resistance	IK03
IP-rating	IP44
Protection class	II
Ambient temperature	from -20 up to 40 °C
Housing material	Plastic
Cover material	Plastic, transparent

Electrical equipment

Mains power supply	230 – 240 V / 50 Hz
Output	60 W
Power consumption	0,55 W

Sensor technology

Mounting height max.	3,00 m
Slave modeselectable	No
Sneak-by guard	Yes
Capability of masking out individual segments	Yes
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 3 m (14 m²)
Reach, tangential	r = 10 m (157 m²)
Cover material	sticker
Optimum mounting height	2 m
Detection angle	180 °

Luminaire

Photo-cell controller	Yes
Lamp	All-purpose lamp
Base	E27
Soft light start	No

General information

Article number	094166
European Article Number (EAN)	4007841094966

Functions

Twilight setting	2 – 2000 lx
Time setting	8 s – 35 Min.
Basic light level function	No
Twilight setting TEACH	No

Connection

Interconnection

No

General information

Product category

Sensor-switched outdoor light
