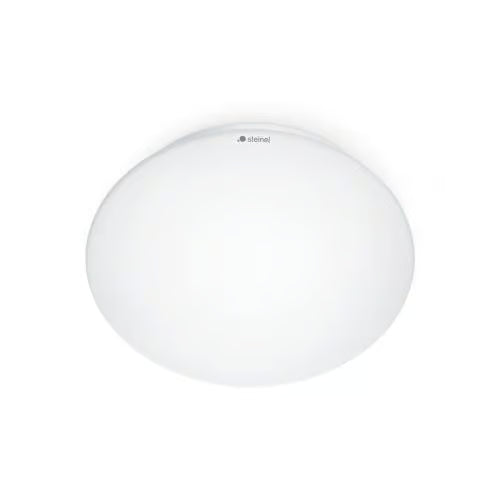

Sensor-switched LED indoor light

RS 16 S Glass

Product Code: 035105

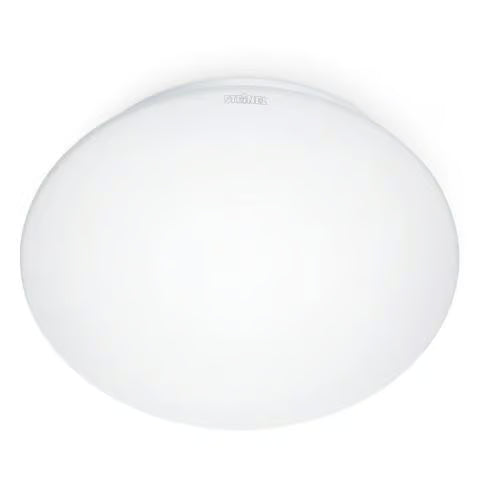

  • Indoor light with motion detector in a simple round design with high-quality opal glass cover

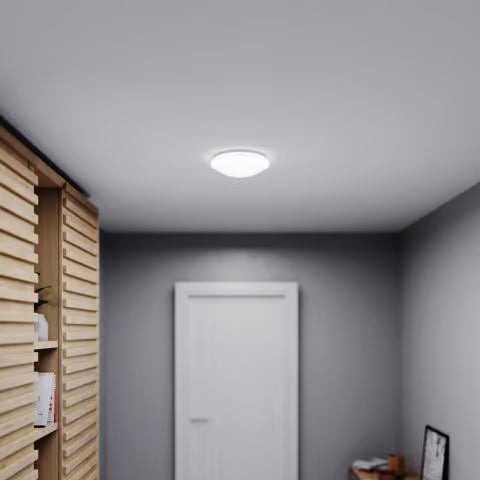

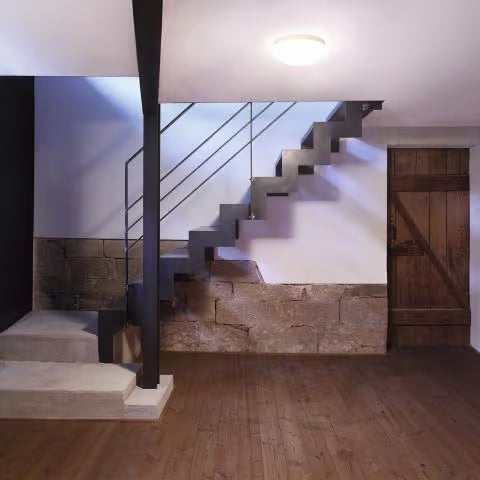

  • As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
  • Several luminaires can be networked by cable for synchronous switching

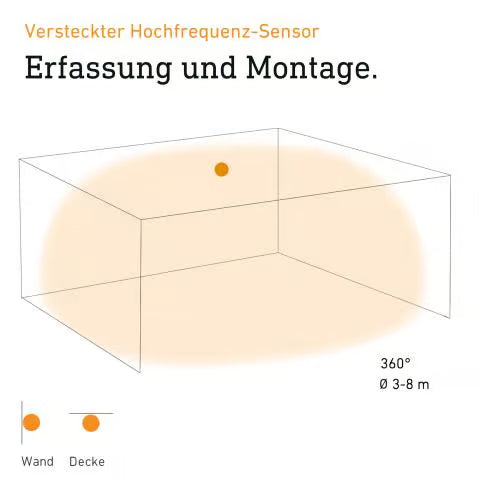

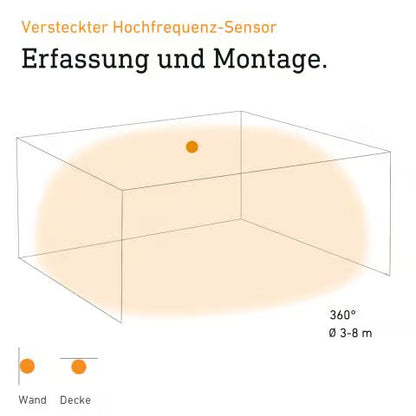

  • Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
  • Functions: adjustable basic light, 4 hours continuous light
  • Warm white light (3000 K) and long-life 9,3 W LEDs with 918 lm

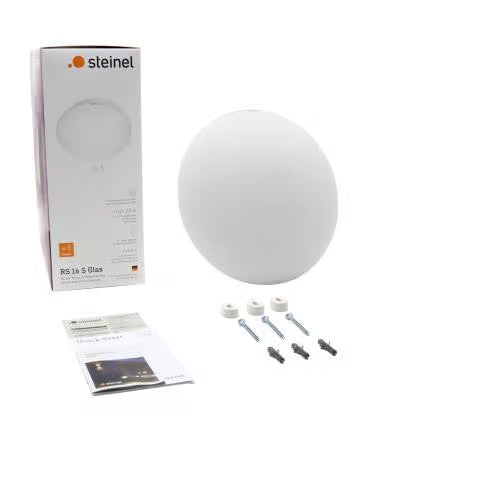

  • Incl. mounting accessories - plastic-free packaging

Pairs well with
How much energy do you want to save?
Evolution of a classic.
Functions at a glance

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

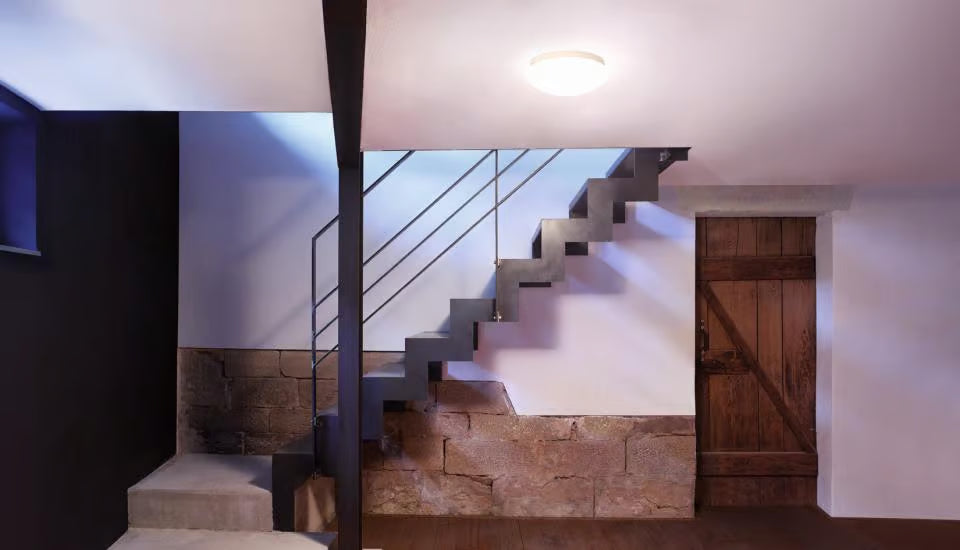

Evolution of a classic.

Technology leap for one of our most popular and cost efficient sensor-switched indoor lights. The latest LED technology, high-frequency sensor and interconnectability launches the RS 16 S into a new dimension of convenience. With a light output of 918 lm and a consumption of just 9,3 W, this luminaire uses up to 90% less electricity. The sleek design is particularly suitable for corridors, hallways or stairwells. The glass shade provides diffused lighting full of atmosphere.

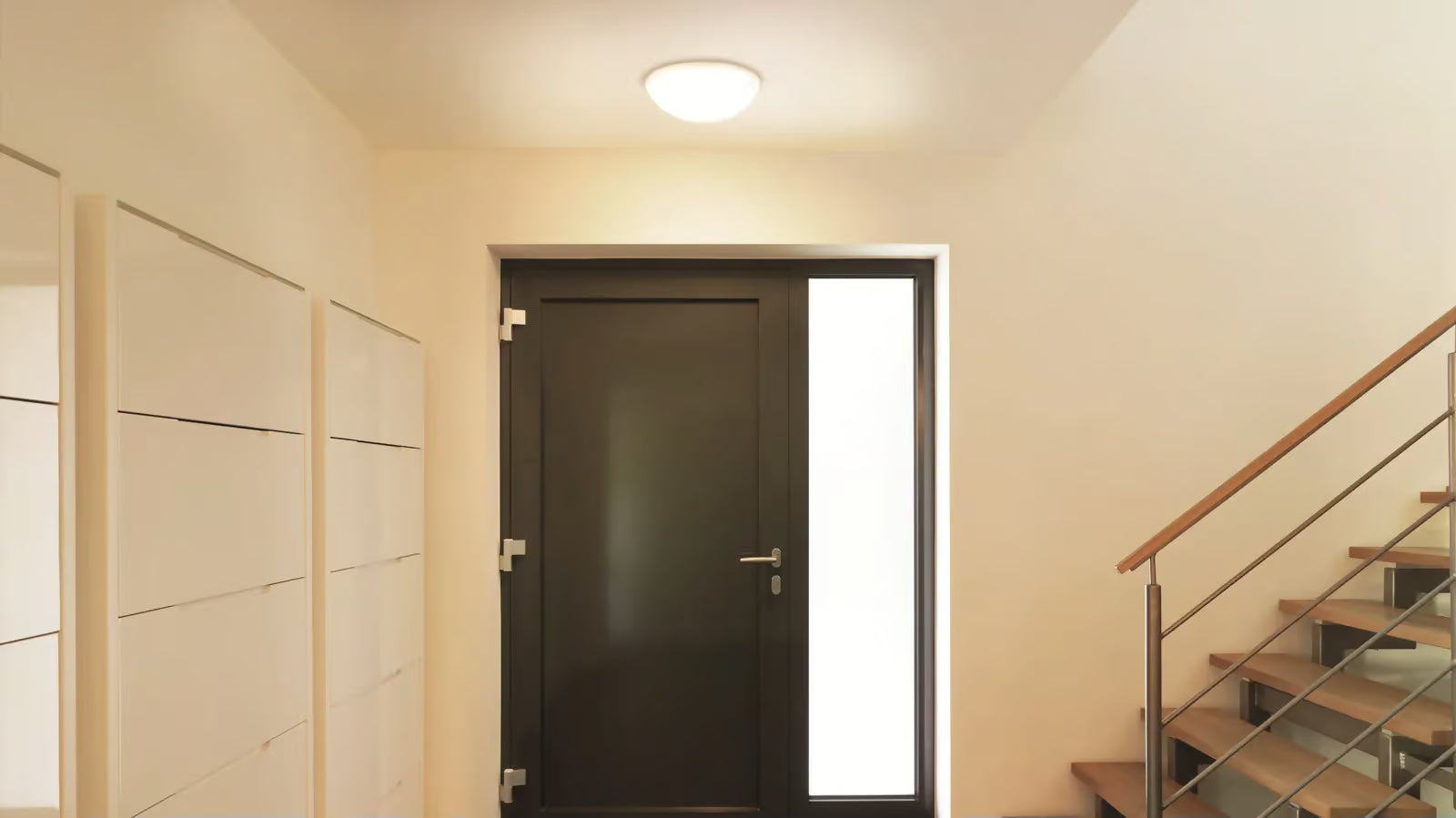

Functions at a glance

  • Basic light: dimmed continuous illumination (10%) after dark for 10 mins, 30 mins or throughout the night, which only switches to maximum light output when motion is detected
  • Continuous light: the light can be switched on for max. 4 hours using the switch, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
  • Reach setting: The detection range (sensitivity) can be adjusted from Ø 3–8 m

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Evolution of a classic.

Technology leap for one of our most popular and cost efficient sensor-switched indoor lights. The latest LED technology, high-frequency sensor and interconnectability launches the RS 16 S into a new dimension of convenience. With a light output of 918 lm and a consumption of just 9,3 W, this luminaire uses up to 90% less electricity. The sleek design is particularly suitable for corridors, hallways or stairwells. The glass shade provides diffused lighting full of atmosphere.

Functions at a glance

  • Basic light: dimmed continuous illumination (10%) after dark for 10 mins, 30 mins or throughout the night, which only switches to maximum light output when motion is detected
  • Continuous light: the light can be switched on for max. 4 hours using the switch, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
  • Reach setting: The detection range (sensitivity) can be adjusted from Ø 3–8 m
Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

high frequency sensor 360°

Icon

Ø 3 - 8 m

Icon

IP44

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

Manual override

Icon

networkable via cable

  • Application, place: Indoors

  • Installation: Surface wiring

  • Article number: 035105

  • PU1, net weight: 1,172 kg

  • Luminous flux total product: 918 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 9,3 W

  • Package content: 1

Product dimension

General

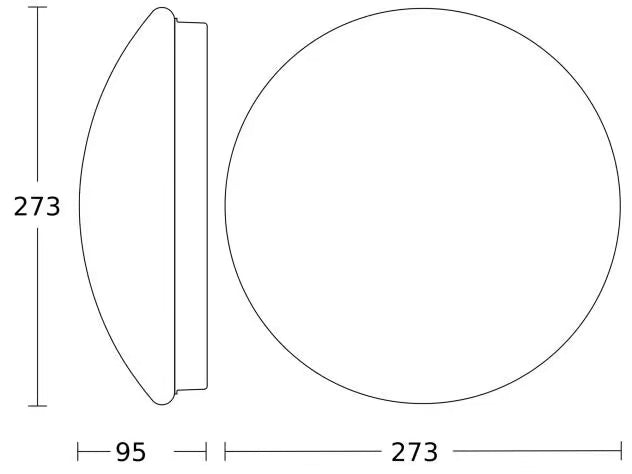

Dimensions (Ø x H)273 x 96 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
VersionGlass
PU1, EAN4007841035105
Application, placeIndoors
Application, roomcorridor / aisle, function room / ancillary room, stairwell, WC / washroom, outdoors, Indoors
Colourwhite
Package content1
Fuse protection B1054
Fuse protection B1687
Fuse protection C1090
Fuse protection C16145

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation sitewall, ceiling
InstallationWall, Ceiling, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -10 up to 40 °C
Housing materialGlass
Cover materialGlass opal
IP-rating, ceilingIP44

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Power consumption0,38 W
Output9,3 W

Sensor technology

Mounting height max.4,00 m
HF-system5,8 GHz
Slave modeselectableNo
Detectionalso through glass, wood and stud walls
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product918 lm
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
Basewithout
LED cooling systemPassive Thermo Control
Soft light startNo
Continuous lightselectable, 4h

General information

Article number035105
European Article Number (EAN)4007841035105
Transmitter power< 1 mW
Basic light level function in per cent10 %
Angle of aperture160 °

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night
Twilight setting TEACHNo

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categorySensor-switched LED indoor light
