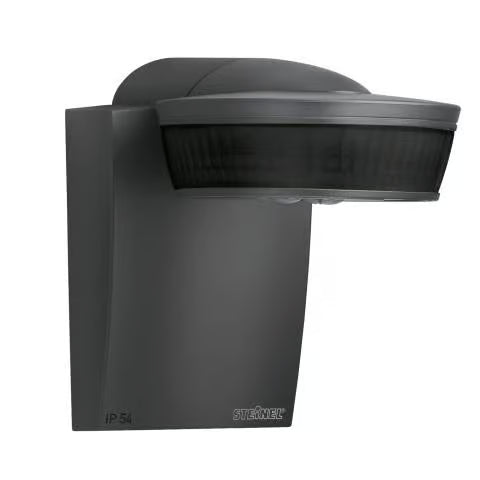

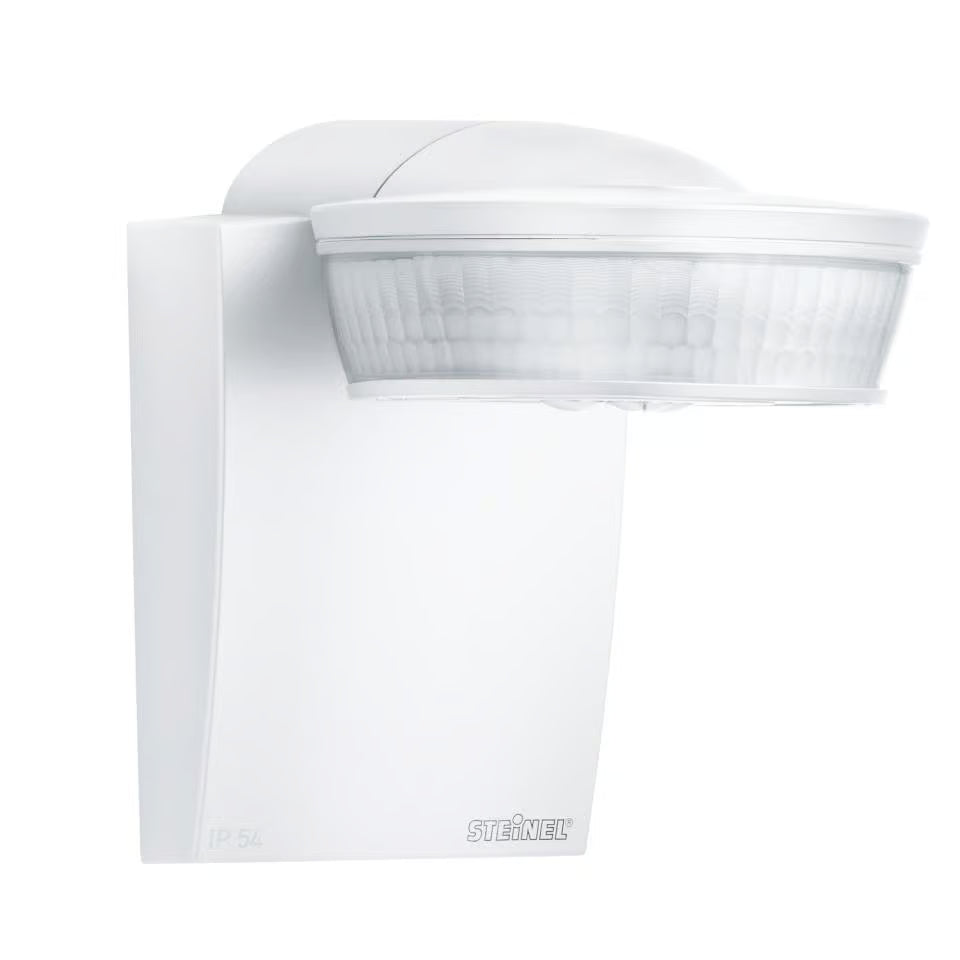

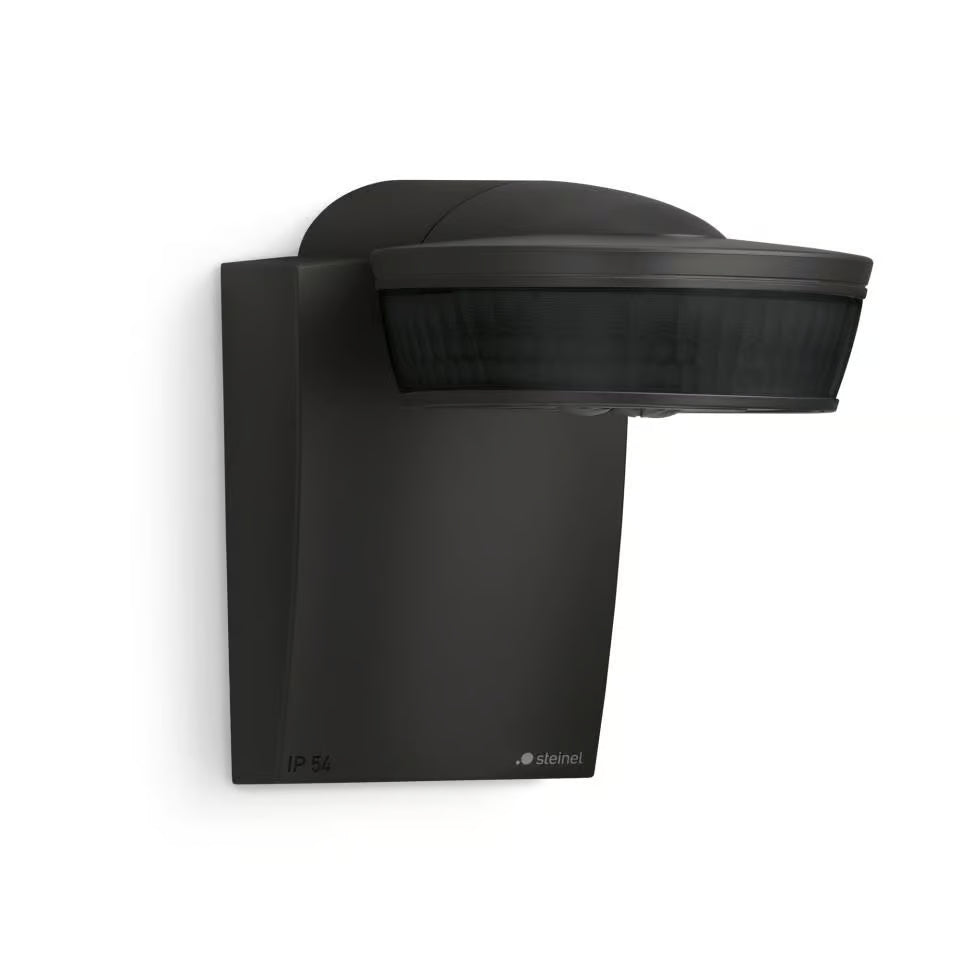

The king of motion detectors. Reference class all round.

The king of motion detectors. Reference class all round.

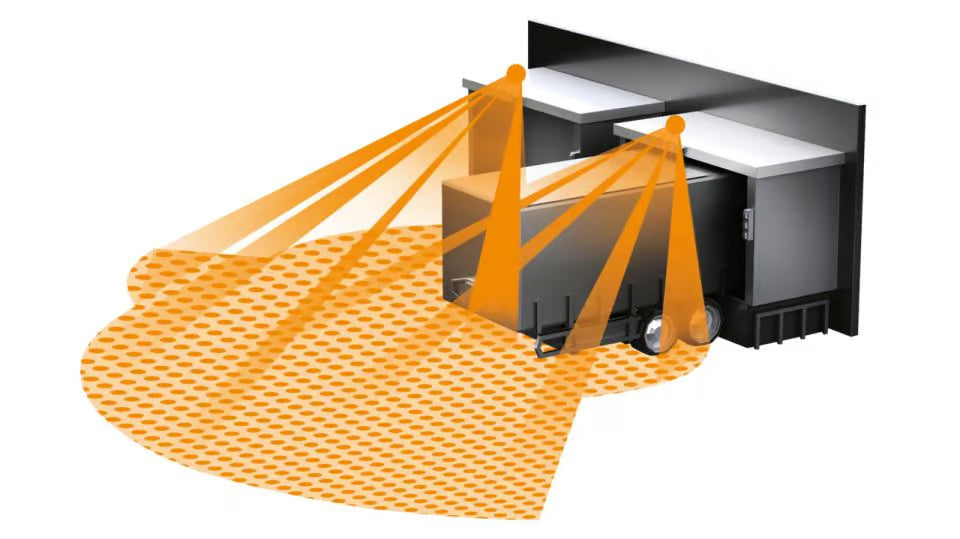

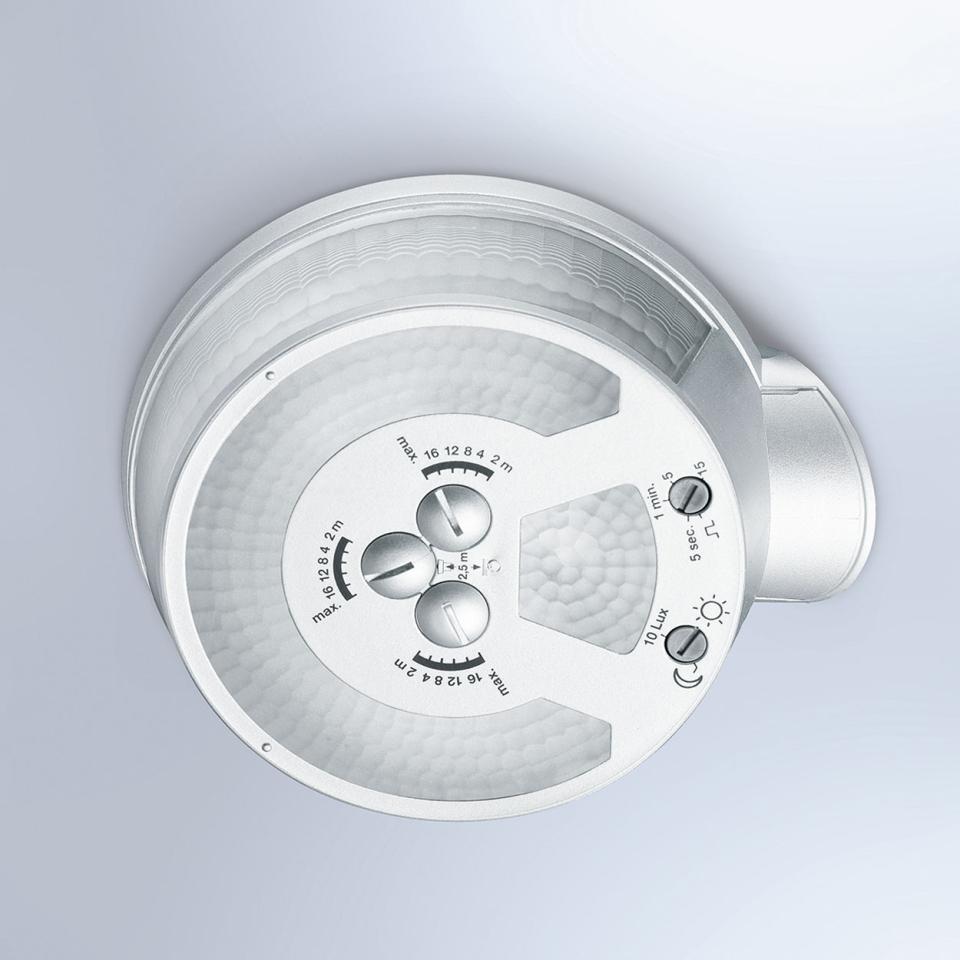

Most motion detectors sit around inconspicuously on a wall or ceiling. The sensIQ is different. Its design is so spectacular that it's a stylish signature on any facade, automatically attracting admiring glances. Behind its internationally acclaimed form is intelligent technology that puts virtually everything else in the shade. Unmatched, the detection reach of the four pyro sensors can easily be scaled in three directions via control dials – instead of shrouds of the type normally used on most other motion detectors. The floating module permits further functions, and you can use the newly available eNet version to integrate the sensor into existing eNet wireless networks.

Icon

infrared sensor 3 x 100°

Icon

3 zones scalable 2-20m

Icon

2500 W max.

Icon

IP54

Icon

2 - 1000 lux

Icon

5 sec - 15 min

Icon

ideal 2 - 5 m

Icon

energy saving

Icon

manufacturer's warranty steinel.de/garantie

  • Application, place: Indoors, Outdoors

  • Installation: Surface wiring

  • Detection angle: 300 °

  • Reach, tangential: r = 20 m (1047 m²)

  • Mounting height max.: 5,00 m

  • Version: white

  • Article number: 029562

  • PU1, net weight: 0,365 kg

  • Interconnection via: Cable

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)172 x 113 x 144 mm
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaRemote control, Potentiometers, Smart Remote
With remote controlYes
Versionwhite
PU1, EAN4007841029562
TypeMotion detectors
Application, placeIndoors, Outdoors
Application, roommulti-storey / underground car park, outdoors, warehouse, front door, all round the building, courtyard & driveway, Indoors
Colourwhite
Colour, RAL9010
Package content1

Fixation/ mounting

Includes corner wall mountYes
Installation sitewall, ceiling, corner
InstallationSurface wiring, Wall, Ceiling, corner

Housing

IP-ratingIP54
Ambient temperaturefrom -20 up to 50 °C
MaterialPlastic

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Switching output 1, resistive2500 W
Switching output 1, number of LEDs / fluorescent lamps8 pcs.
Switching output 1, floatingNo
Fluorescent lamps, electronic ballast500 W
Fluorescent lamps, series-corrected1800 VA
Fluorescent lamps, parallel-corrected500 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W250 W
LED lamps > 8 W500 W
Capacitive load in μF176 µF

General information

Article number029562
European Article Number (EAN)4007841029562
Detection angle300 °
Angle of aperture180 °

Sensor technology

Technology, sensorspassive infrared, Light sensor
Mounting height2,00 – 5,00 m
Mounting height max.5,00 m
Optimum mounting height2 m
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityYes
Reach, radialr = 4 m (42 m²)
Reach, tangentialr = 20 m (1047 m²)
Switching zones1360 switching zones

Functions

FunctionsNormal / test mode, Manual ON / ON-OFF
Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes
Constant-lighting controlNo

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categoryMotion detector
