Motion detector - Professional Line

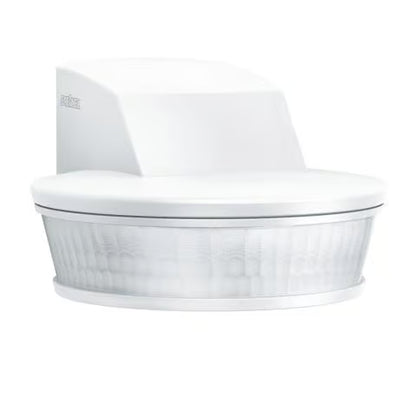

sensIQ S White / COM1 (on/off)

Product Code: 034955

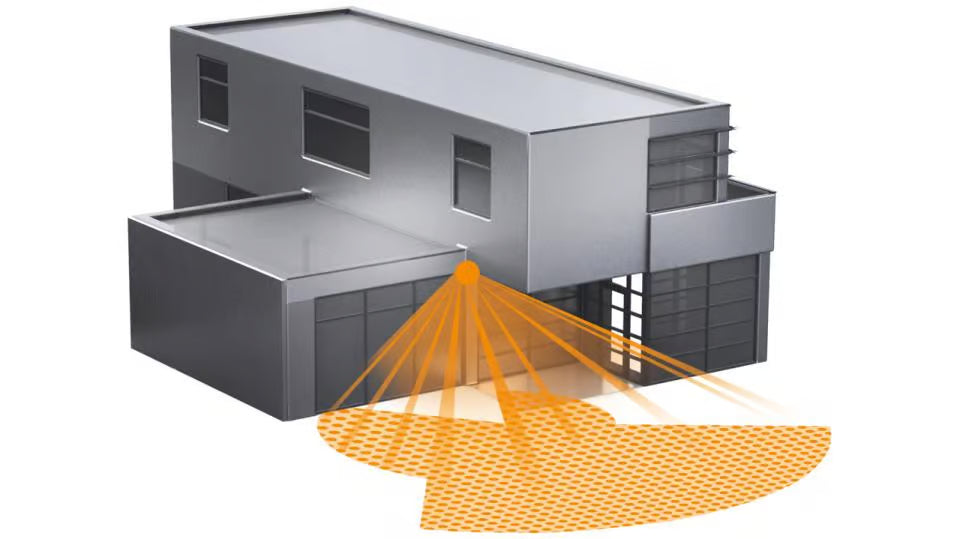

The evolution of perfection. The sensIQ S is just as perfect as its larger role model. For indoors and outdoors, ideal for building entrances, loading bays, for mounting heights of up to 5 m, quadruple sensor system for optimum surveillance over 3x100° coverage angle, 20 m reach (tangential), reach setting to the accuracy of a metre in 3 independent directions. Remote control and corner wall mount bracket included.

Colour
Colour: White

Pairs well with

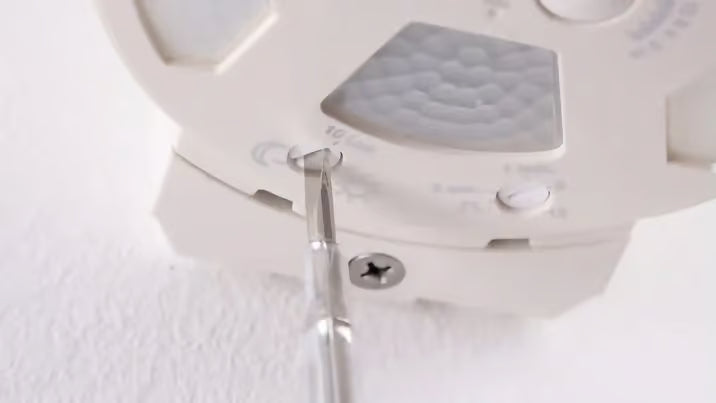

The evolution of perfection. The reference in compact design.

The evolution of perfection. The reference in compact design.

Handsome addition! The sensIQ S is just as perfect in form and functional diversity as its larger role model. A look that architects like. This designer motion detector was developed specifically for wall mounting though. Being altogether more compact that its big brother, the sensIQ S nestles up against the facade, perfectly harmonising with modern, purist architecture. Its inner values are spectacular too because it comes with the same highly intelligent features and setting options as the sensIQ.

The evolution of perfection. The reference in compact design.

Handsome addition! The sensIQ S is just as perfect in form and functional diversity as its larger role model. A look that architects like. This designer motion detector was developed specifically for wall mounting though. Being altogether more compact that its big brother, the sensIQ S nestles up against the facade, perfectly harmonising with modern, purist architecture. Its inner values are spectacular too because it comes with the same highly intelligent features and setting options as the sensIQ.

The evolution of perfection. The reference in compact design.

Handsome addition! The sensIQ S is just as perfect in form and functional diversity as its larger role model. A look that architects like. This designer motion detector was developed specifically for wall mounting though. Being altogether more compact that its big brother, the sensIQ S nestles up against the facade, perfectly harmonising with modern, purist architecture. Its inner values are spectacular too because it comes with the same highly intelligent features and setting options as the sensIQ.

The evolution of perfection. The reference in compact design.

Handsome addition! The sensIQ S is just as perfect in form and functional diversity as its larger role model. A look that architects like. This designer motion detector was developed specifically for wall mounting though. Being altogether more compact that its big brother, the sensIQ S nestles up against the facade, perfectly harmonising with modern, purist architecture. Its inner values are spectacular too because it comes with the same highly intelligent features and setting options as the sensIQ.

Icon

infrared sensor 3 x 100°

Icon

3 zones scalable 2-20m

Icon

max. 2000 W

Icon

IP54

Icon

2 - 2000 lux daylight operation

Icon

5 sec - 15 min

Icon

ideal 2 - 5 m

Icon

Teach mode

Icon

energy saving

  • Application, place: Indoors, Outdoors

  • Installation: Surface wiring

  • Detection angle: 300 °

  • Reach, tangential: r = 20 m (1047 m²)

  • Mounting height max.: 5,00 m

  • Version: white

  • Article number: 034955

  • PU1, net weight: 0,252 kg

  • Interconnection via: Cable

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)128 x 114 x 74 mm
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaRemote control, Potentiometers, Smart Remote
With remote controlYes
Versionwhite
PU1, EAN4007841034955
TypeOther
Application, placeIndoors, Outdoors
Application, roommulti-storey / underground car park, outdoors, warehouse, front door, all round the building, courtyard & driveway, Indoors
Colourwhite
Colour, RAL9010
Package content1

Fixation/ mounting

Includes corner wall mountYes
Installation sitewall, corner
InstallationSurface wiring, Wall, corner

Housing

IP-ratingIP54
Ambient temperaturefrom -20 up to 50 °C
MaterialPlastic

Electrical equipement

Mains power supply100 – 240 V / 50 – 60 Hz
Switching output 1, resistive2000 W
Switching output 1, number of LEDs / fluorescent lamps50 pcs.
Fluorescent lamps, electronic ballast1500 W
Fluorescent lamps, uncorrected1000 VA
Fluorescent lamps, series-corrected700 VA
Fluorescent lamps, parallel-corrected1000 VA
Switching output 1, low-voltage halogen lamps1000 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W300 W
LED lamps > 8 W600 W
Capacitive load in μF176 µF
Power supply, detail500 VA max., 120 V

General information

Article number034955
European Article Number (EAN)4007841034955
Detection angle300 °
Angle of aperture180 °

Sensor technology

Technology, sensorspassive infrared, Light sensor
Mounting height2,00 – 5,00 m
Mounting height max.5,00 m
Optimum mounting height2 m
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityYes
Reach, radialr = 4 m (42 m²)
Reach, tangentialr = 20 m (1047 m²)
Switching zones1360 switching zones

Functions

FunctionsNormal / test mode, Manual ON / ON-OFF
Twilight setting2 – 1000 lx
Time setting5 s – 15 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes
Constant-lighting controlNo

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categoryMotion detector
