Sensor-switched LED floodlight

Spot Way SC with motion detector & Bluetooth

Product Code: 058661

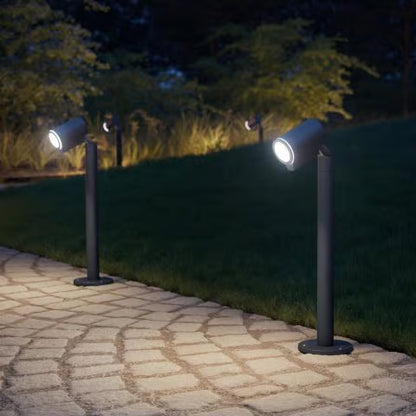

Floor and path luminaire with motion detector, perfect for illuminating paths and driveways
Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled 180° horizontally and 90° vertically
Wireless networking via Bluetooth and easy setting via STEINEL Connect App

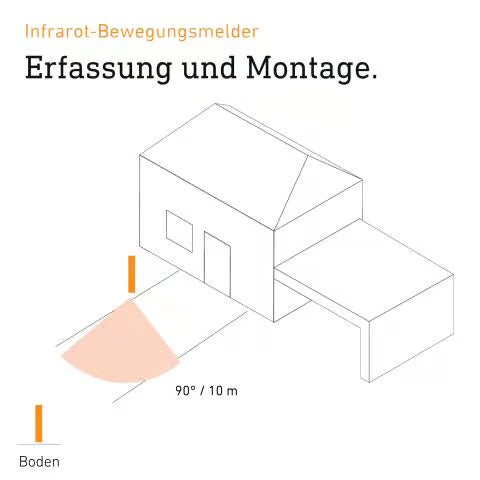

Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W

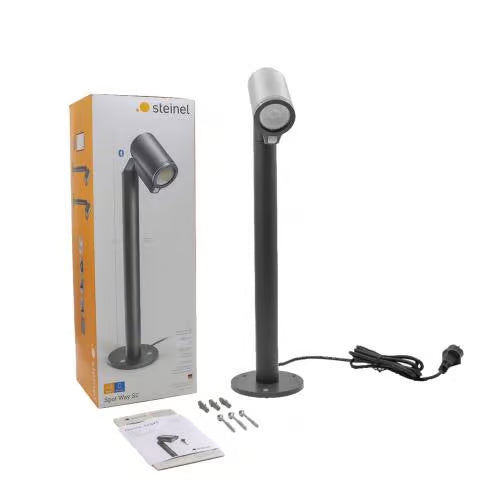

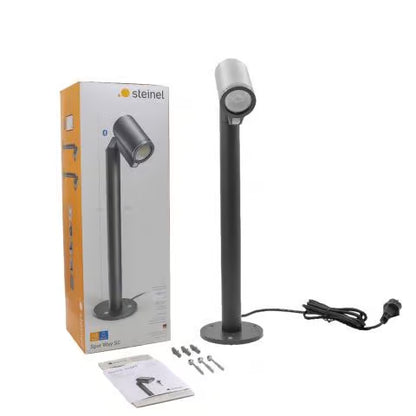

Incl. 2.5 m mains cable and mounting accessories - plastic-free packaging

This product contains a light source ofenergy efficiency class F

Product variants

Pairs well with

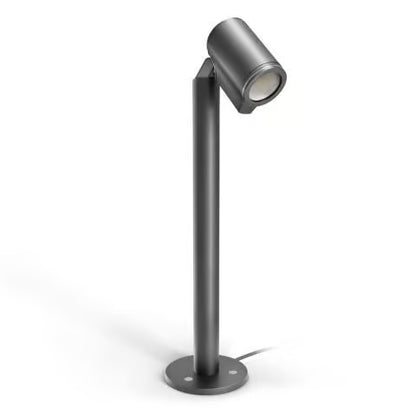

Spot Way

SC with motion detector & Bluetooth

Pointing the way. In every respect.

What first catches the eye: the uncompromisingly elegant design. On closer examination, the 57 cm tall "Spot Way" ground spot series not only impresses with swivelling spotlight head but also with brilliant technical details. For instance, it delivers warm-white light of 3000 K and 512 lm from a low consumption of just 7,9 W, always bathing driveways, entrance and garden paths in the most attractive light at dusk. The "Spot Way SC" Connect version is based on the Bluetooth wireless standard and permits wireless interconnection as well as digital adjustment and control of many different functions, such as time setting and light-level threshold or ON and OFF times. Lighting groups can also be easily defined on this basis. The ground spots from the "Spot Way" series are fitted with a 2.5 m mains connection cable and come complete with lamp (GU-10 LED).

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

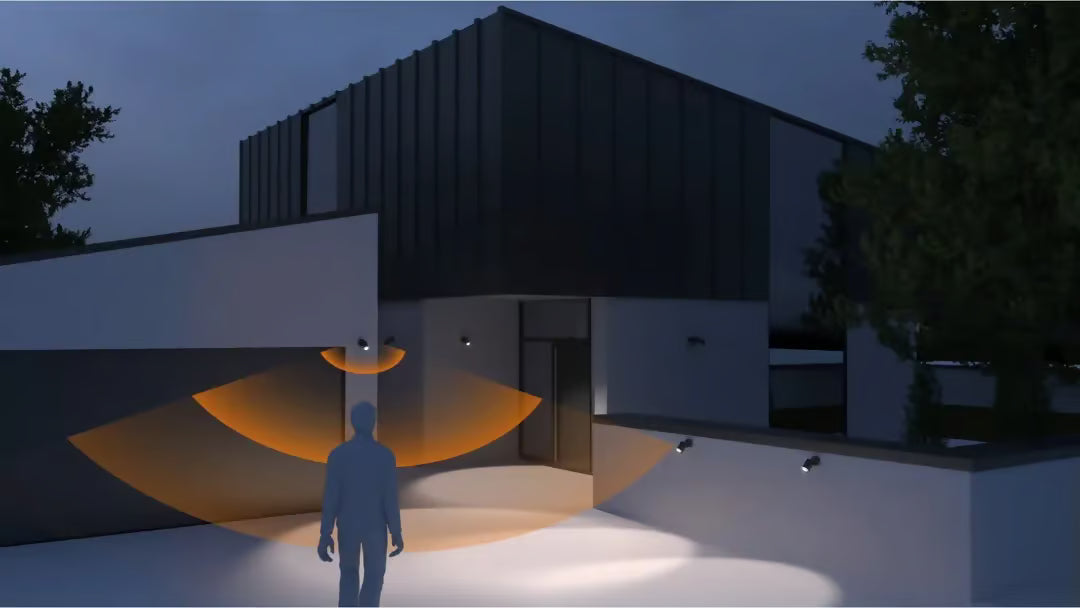

Application and installation Video

In this video, you can see how the spotlight is mounted using the example of the "Spot ONE SC" and which application options and functions this Bluetooth variant offers you.

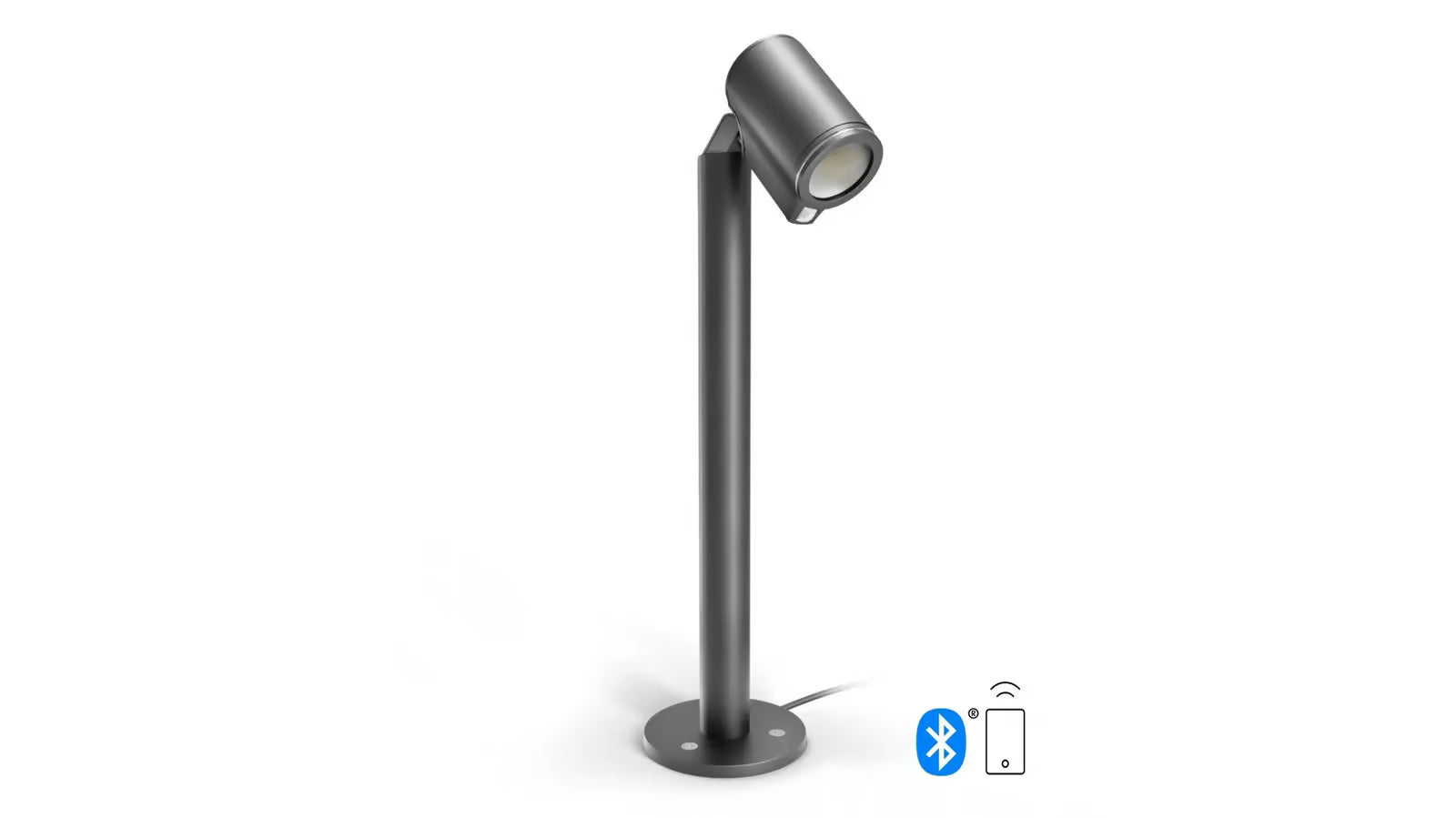

Functions at a glance

The "Spot Way SC" offers convenient controls and simple networking via the free STEINEL app. This version offers the following setting options:

Twilight setting: select the lighting conditions in which the light switches on when motion is detected
Timer: define the earliest time at which the light should switch on after twilight
Time setting: decide how long (5 secs – 1 hour) the light stays switched on after motion is detected
Continuous light: switches the light on for max. 4 hours, without detecting motion

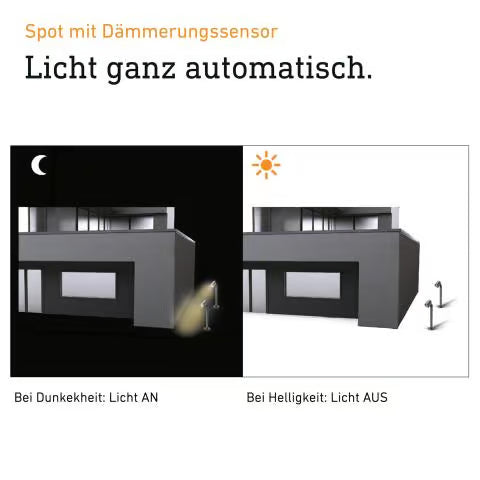

NightAutomatic: Light automatically switches on at dusk and automatically switches off at dawn
Night economy mode: define a period of time at night, during which the “NightAutomatic” function is switched off

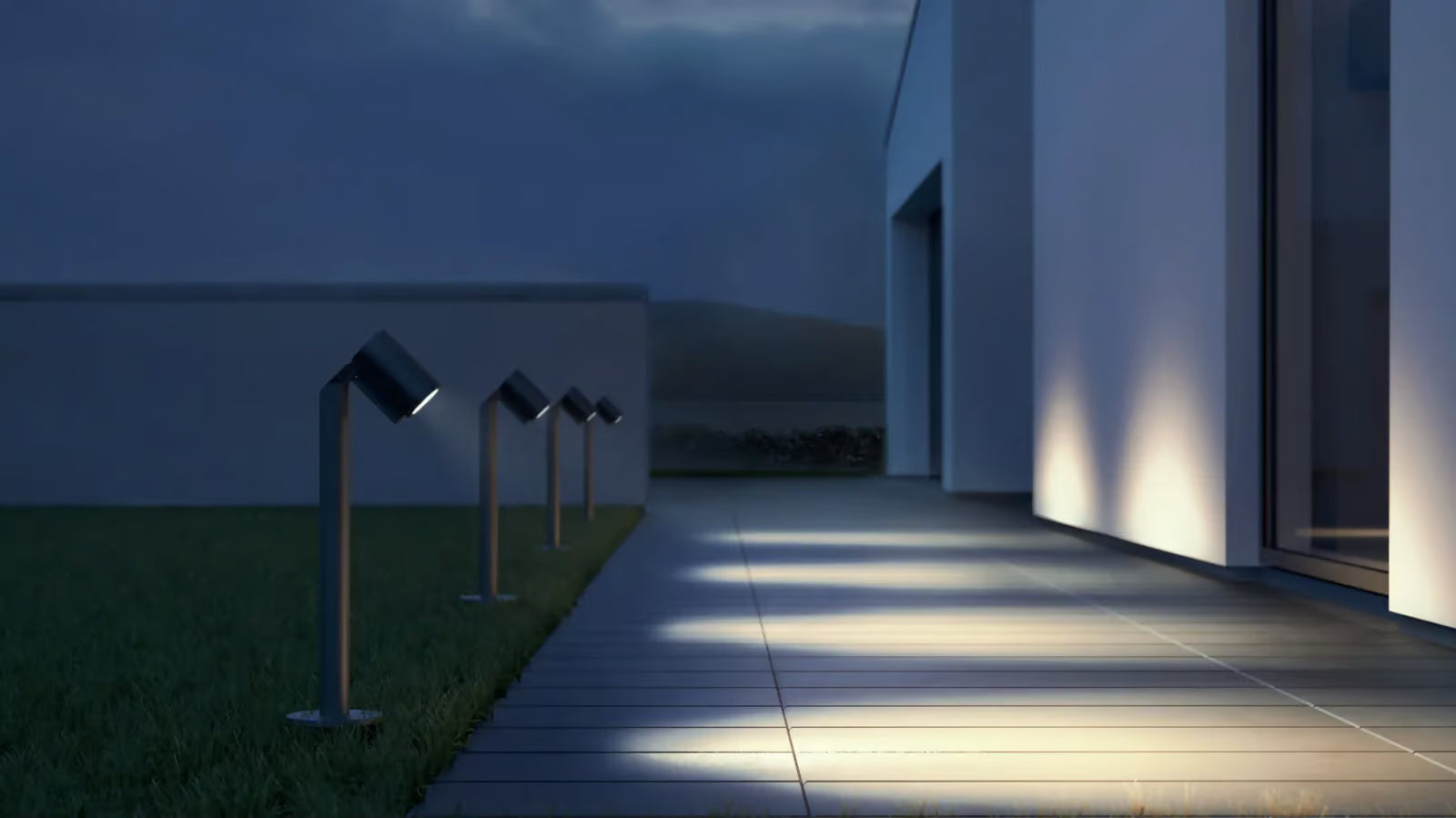

The Spot Way in three versions

1. Spot Way: without motion detector
2. Spot Way SC: with motion detector and Bluetooth Connect
3. Spot Way N: with brightness sensor

The Connect version offers easy networking and setting conveniently via app.

20.000 h

3000K warm-white

38°

Infrared sensor 90°

max. 10 m

Twilight switch

IP44

Light source replaceable by end user

Control gear not exchangeable

Application, place: Outdoors
Installation: Surface wiring
Article number: 058661
PU1, net weight: 1,136 kg
Luminous flux total product: 512 lm
Colour temperature: 3000 K
With motion detector: Yes
Interconnection via: Bluetooth
Output: 7,9 W

General

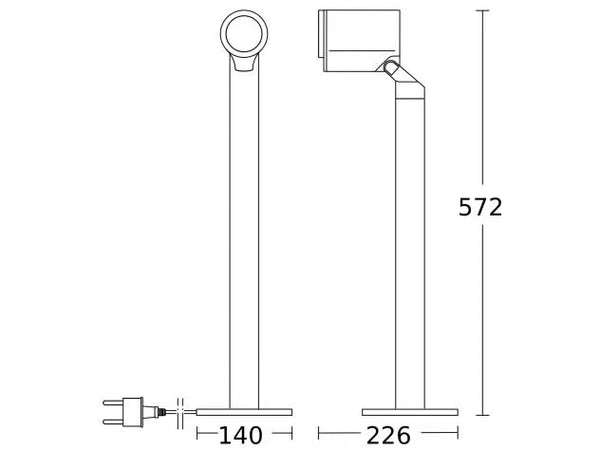

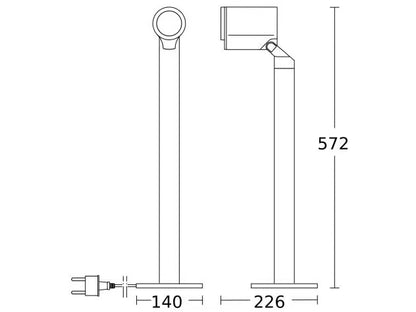

Dimensions (L x W x H)	226 x 140 x 572 mm
With lamp	Yes, LED lamp
With motion detector	Yes
Manufacturer's Warranty	3 years
Settings via	Bluetooth
Version	with motion detector & Bluetooth
PU1, EAN	4007841058661
Application, place	Outdoors
Application, room	outdoors, garden
Colour	Anthracite

Fixation / Mounting

Includes corner wall mount	No
Installation site	Stand mounted
Installation	Stand mounted

Housing

Impact resistance	IK03
IP-rating	IP44
Protection class	I
Ambient temperature	from -20 up to 40 °C
Housing material	Aluminium
Cover material	Plastic, transparent

Electrical Equipment

Mains power supply	220 – 240 V / 50 – 60 Hz
Output	7,9 W

Sensor Technology

Slave mode selectable	Yes
Sneak-by guard	No
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 2 m (3 m²)
Reach, tangential	r = 10 m (79 m²)
Detection angle	90 °

Luminaire

Photo-cell controller	Yes
Luminous flux total product	512 lm
Measured luminous flux (360°)	512 lm
Total product efficiency	64,8 lm/W
Colour temperature	3000 K
Colour variation LED	SDCM5
Lamp	LED can be replaced
Service life LED L70B50 (25°)	> 20000 h
Soft light start	No
Continuous light	selectable, 4h
Colour Rendering Index CRI	= 81

General Information

Article number	058661
European Article Number (EAN)	4007841058661

Functions

Functions	Manual ON / ON-OFF, Timer, Master/slave override
Twilight setting	2 – 2000 lx
Time setting	5 s – 60 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes

Connection

Interconnection	Yes
Interconnection via	Bluetooth
