With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Light meets elegance.

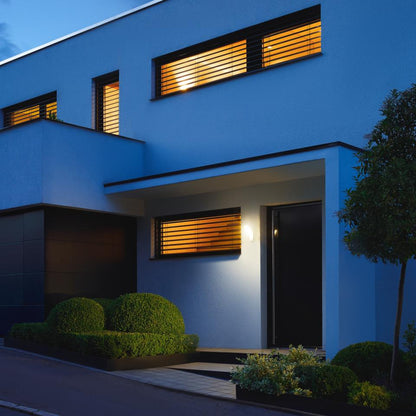

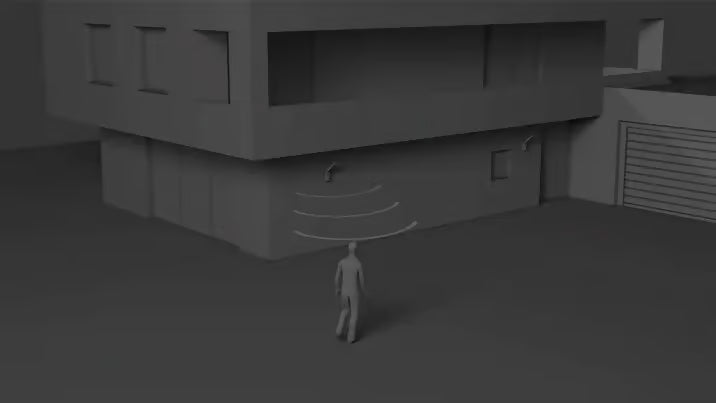

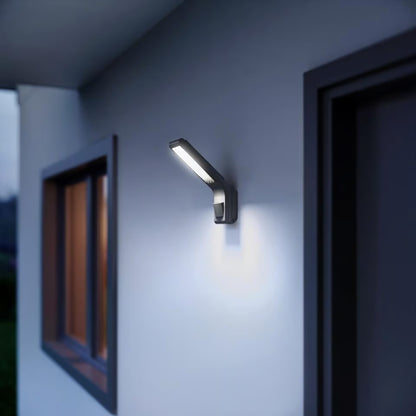

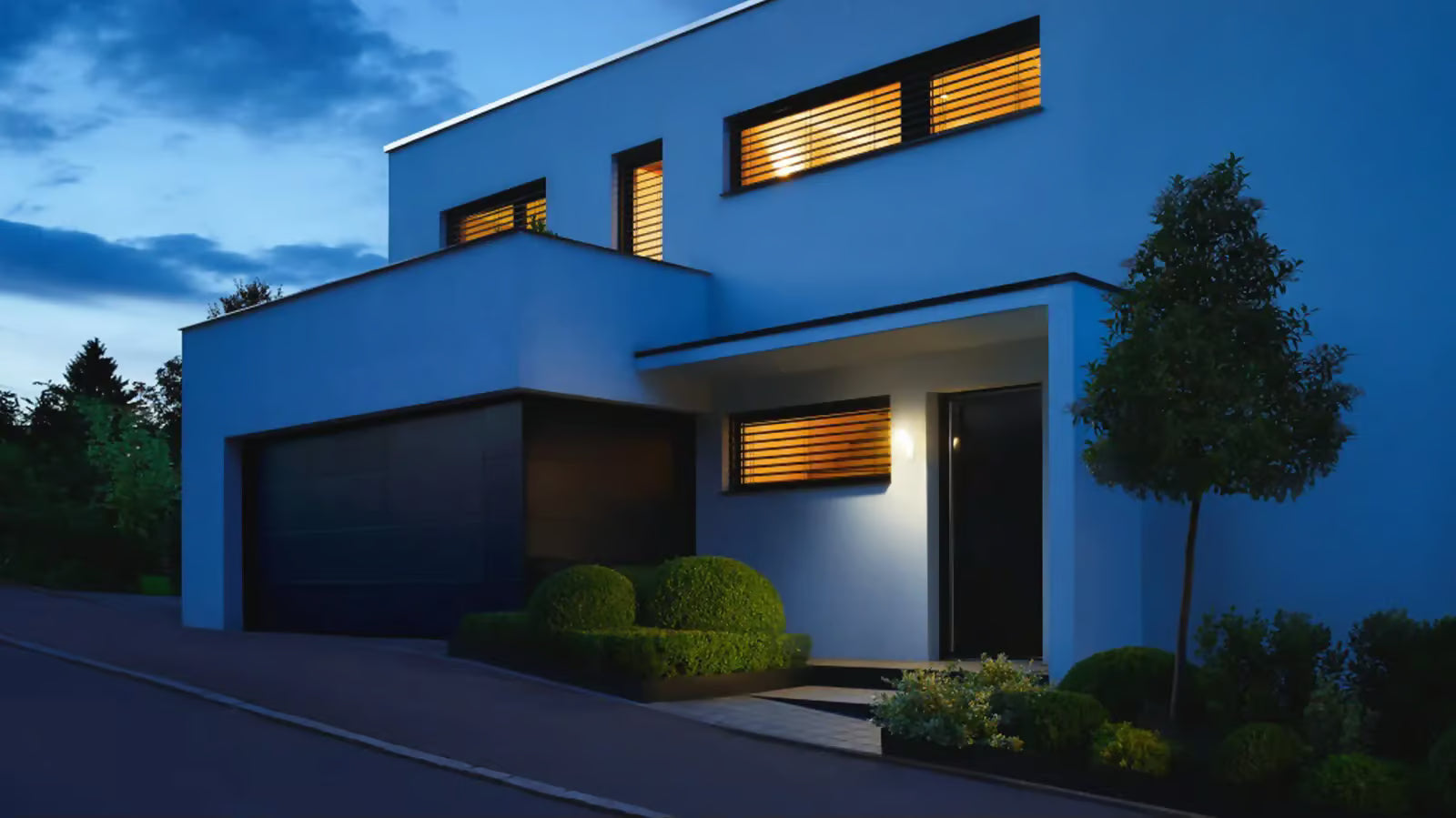

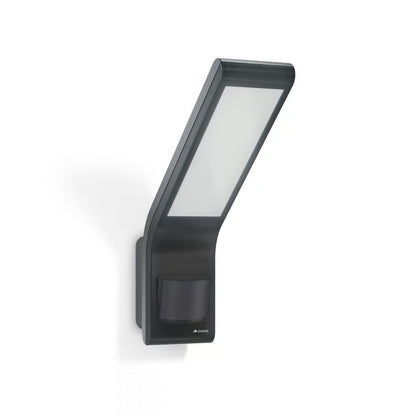

When visitors arrive, light comes into play with the economical outdoor floodlight XLED slim S. This stylish lighting solution captivates with its elegant design and provides attractive illumination for building entrances and pathways. On building facades the XLED slim S makes attractive lighting statements that not only look good but also ensure you get home safely. At the same time, the unobtrusive floodlight with its almost invisible sensor blends into the background with visual discretion.

Light meets elegance.

When visitors arrive, light comes into play with the economical outdoor floodlight XLED slim S. This stylish lighting solution captivates with its elegant design and provides attractive illumination for building entrances and pathways. On building facades the XLED slim S makes attractive lighting statements that not only look good but also ensure you get home safely. At the same time, the unobtrusive floodlight with its almost invisible sensor blends into the background with visual discretion.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Light meets elegance.

When visitors arrive, light comes into play with the economical outdoor floodlight XLED slim S. This stylish lighting solution captivates with its elegant design and provides attractive illumination for building entrances and pathways. On building facades the XLED slim S makes attractive lighting statements that not only look good but also ensure you get home safely. At the same time, the unobtrusive floodlight with its almost invisible sensor blends into the background with visual discretion.

Light meets elegance.

When visitors arrive, light comes into play with the economical outdoor floodlight XLED slim S. This stylish lighting solution captivates with its elegant design and provides attractive illumination for building entrances and pathways. On building facades the XLED slim S makes attractive lighting statements that not only look good but also ensure you get home safely. At the same time, the unobtrusive floodlight with its almost invisible sensor blends into the background with visual discretion.

Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

infrared sensor 160°

Icon

max. 8 m

Icon

IP44

Icon

2 - 1000 lux

Icon

2 sec - 70 min

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 012052

  • PU1, net weight: 0,57 kg

  • Luminous flux total product: 648 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 7,2 W

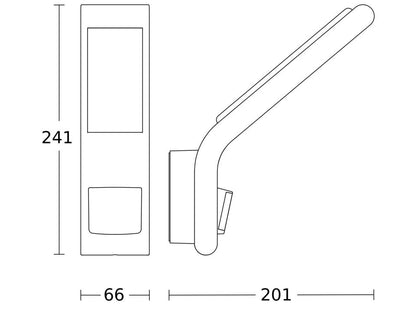

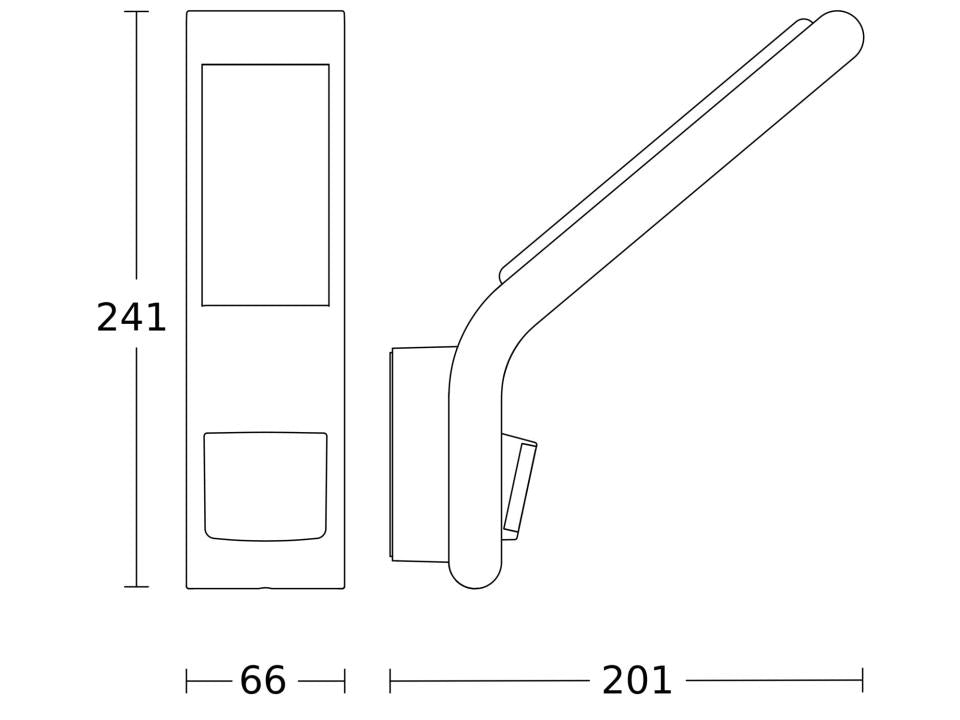

Product dimension

General

Dimensions (L x W x H)201 x 66 x 241 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
VersionAnthracite
PU1, EAN4007841012052
Application, placeOutdoors
Application, roomoutdoors, all around the building, terrace / balcony
ColourAnthracite

Fixation/mounting

Includes corner wall mountNo
Installation sitewall
InstallationWall, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPlastic, transparent

Electrical equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Output7.2 W

Sensor technology

Mounting height max.4,00 m
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 4 m (22 m²)
Reach, tangentialr = 8 m (89 m²)
Cover materialsticker
Optimum mounting height2,2 m

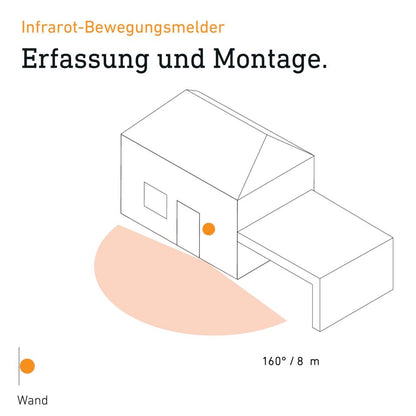

Detection angle160 °

Luminaire

Photo-cell controllerYes
Luminous flux total product648 lm
Measured luminos flux (360°)648 lm
Total product efficiency90 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Service life LED L70B50 (25°)> 60000 h
Drop in luminous flux in accordance with LM80L70B10
LED cooling systemActive and Passive Thermo Control
Soft light startNo
Colour Rendering Index CRI= 82
Energy efficiency class of light sourceF

General information

Article number012052
European Article Number (EAN)4007841012052

Functions

Twilight setting2 – 1000 lx
Time setting2 s – 70 Min.
Basic light level functionNo
Main light adjustableNo

Connection

InterconnectionNo

General information

Product categorySensor-switched LED floodlight
