Floodlight XLED 25

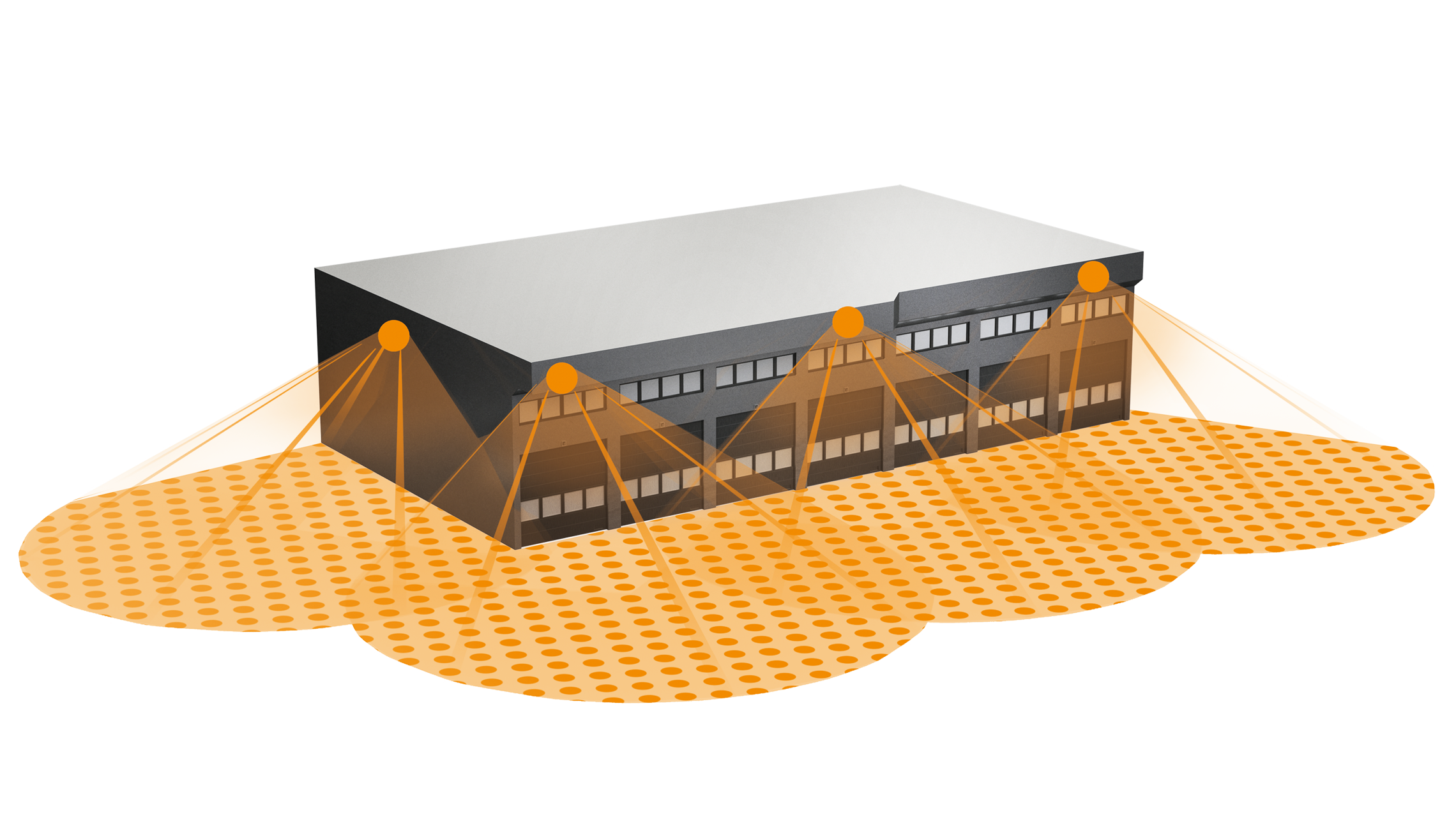

Evolution 3 Designer sensor-switched LED floodlight XLED 25 even better. Ideal for loading bays, courtyard entrances and outdoor spaces around buildings, interconnectable by cable, 62 W LED/4000 lm for perfect illumination on a minimal amount of energy, 240° angle of coverage, max. reach 12 m, light panel and sensor fully swivelling, STEINEL Active-Thermo-Control.

Version

About Floodlight XLED 25

The measure of things. In performance and efficiency.

The larger the property the greater the challenge. These are overcome most efficiently with the extremely powerful XLED 25. As the name says, it “floods” 4000 lumens out into the night from its 25 high-end LEDs. At 62 watts, this is the highest light output that’s currently possible. In short: the XLED 25 is the absolute measure of things. Sensor technology, range of functions and unique directional flexibility identical to its smaller brother, the XLED 10.

Technical Specifications
Dimensions(w x h x d)
306 x 201 x 211 mm
Voltage
230-240 V/50 Hz
Sensor type
Passive infrared
Output
25 LEDs, approx. 62 W / 4000 lm
max. output (resistive load, incandescent lamp)
800 W
max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps)
400 VA
max. output (electronic ballasts, capacitive, e.g. low-energy lamps)
max. of 4 each, ? 88 µF
Brightness
4000 lm
Efficiency
64.5 lm/W
Light colour
4100 K / SDCM 6
Colour rendering
Ra ≥ 60
LED life expectancy
50,000 h (L70B10 to LM80)
Floodlight positioning range
270° horizontally, 200° vertically

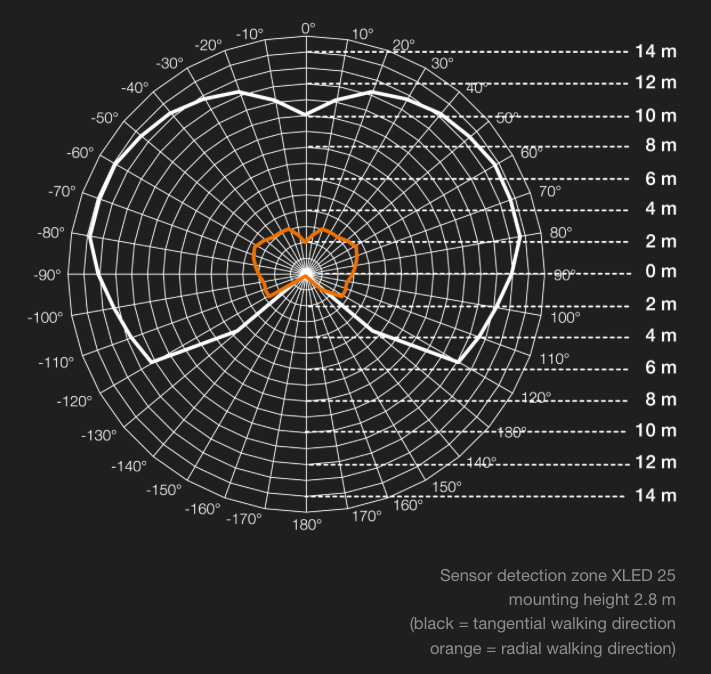

Detection angle
240° with sneak-by guard
Reach
12 m max. (temperature-stabilised)
Capability of masking out individual segments
Yes
Sensor system
9 detection levels, 304 switching zones
Time setting
5 sec. - 15 min.
Response brightness
2-2000 lx
Degree of protection (IP)
IP44
Protection class
I
Basic light level
10% basic brightness (approx. 3 W); a) all night, b) 10 min. after expiry of the set time
Manual override
selectable, 4h
Material
Aluminium
With lamp
STEINEL LED system
Temperature range
-20°C - +50°C
Lamp replaceable
No
Colour
White
