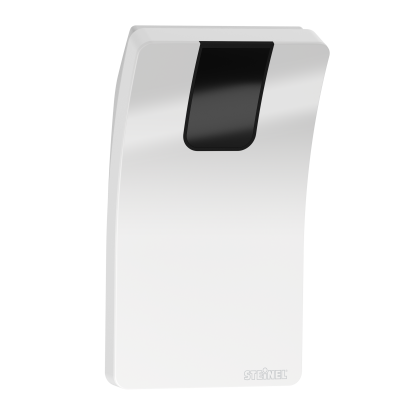

Human Presence Detector HP2

The human presence detector HPD 2 is the next chapter in sensor systems. A sensor that accurately detects persons and their numbers. Persons sitting or standing, even if they aren’t moving. It has taken the world’s best specialists and universities over 5 years to develop this system that analyses images directly in the sensor. This now opens up completely new application options in building automation.

Version

About Human Presence Detector HP2

Benefits

  • Analyse how spaces and rooms are utilised through live analytics
  • Know the amount of people in a given space to assist with scheduling, office/retail design, and future project design
  • Connect via KNX to integrate into your building management system
  • Control a variety of building services including Lighting, HVAC, Lifts, Blinds and more
  • Easily plugs into your KNX bus system
Technical Specifications
Part number
033200
Dimensions (L x W x H)
52 x 86 x 156 mm
Mains power supply
21 – 30V
Power supply, detail
KNX bus, additional voltage of 18-57 V DC, 130 mA bus current
Sensor Technology
Optical sensor
Application
Indoors
Recommended application
One-person office, corridor, aisle, equipment room, Open-plan office, conference room
Installation
Wall
Mounting height
2,30 – 6,00 m
Detection angle
110 °
Angle of aperture
110 °
Reach, radial
r = 10 m (96 m²)
Reach, tangential
r = 10 m (96 m²)
Reach, presence
r = 10 m (96 m²)
Time setting
1 s – 255 min
KNX functions
Light level, Humidity output, Presence output, Temperature output
With bus coupling
Yes
Settings via
Bus
With remote control
No
IP rating
IP20
Material
Plastic
Ambient temperature
0 – 40 °C
Colour
White (RAL 9010)
Warranty
5 years
Interface
KNX
